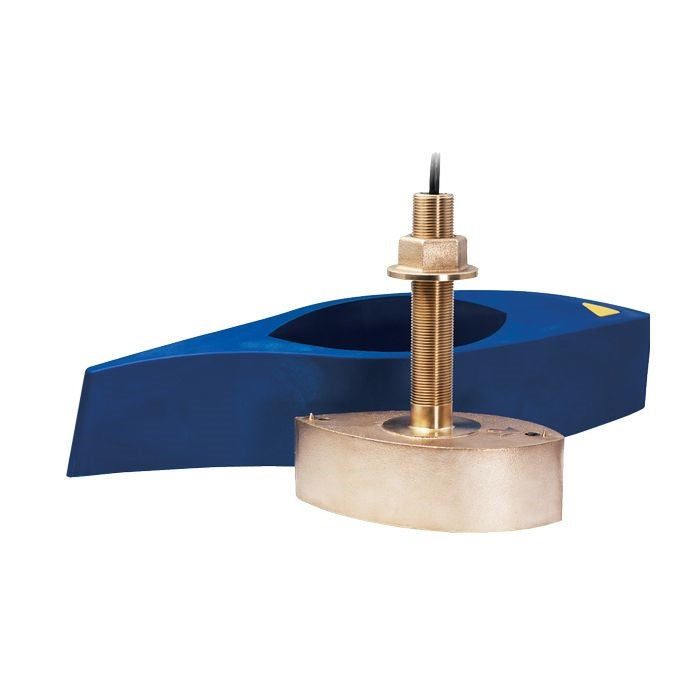

Airmar B265C-LH Bronze TH Low/High CHIRP Furuno 12-Pin Mix-N-Match - B265C-LH-12F
Available for purchase
Airmar B265C-LH Bronze Thru Hull with Furuno 12-Pin Mix-N-Match Cable
Model: B265LH-12F- Depth and fast-response water-temperature sensing
- 1 kW of power for great deep-water performance
- Low frequency: 42 to 65 kHz, 25 deg to 16 deg beamwidth, Maximum depth of 914 m (3000 feet)
- High frequency: 130 to 210 kHz, 10 deg to 6 deg beamwidth, Maximum depth of 304 m (1000 feet)
- 103 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
- Bronze housing with High-performance Fairing for optimal high-speed performance
- Patented Xducer ID(R) technology
We know that specific frequencies excel at detecting certain species of fish: Bluefin Tuna-60 kHz, squid-133 kHz, and cod-175 kHz. The B265LH transducer includes all these frequencies plus every other frequency in the high and low bandwidths. This powerhouse delivers excellent resolution, bottom discrimination, and bait and game-fish separation at all depths.
Airmar's B265LH is packed with a seven-element, low-frequency array that operates between 42 and 65 kHz for excellent deep-water performance. The high-frequency ceramic operates between 130 and 210 kHz with a narrow, 10 deg to 6 deg, beam-perfect for picking apart structure and pinpointing tight-holding fish in structure.
The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).
Specifications| 9 m (30 feet) | |
| Frequency Band | Low-High |
| High Frequency | 130-210 kHz |
| High Frequency Beamwidth | 10 deg-6 deg |
| Low Frequency | 42-65 kHz |
| Low Frequency Beamwidth | 25 deg-16 deg |
| Housing Material | Bronze |
| Max Deadrise | Up to 20 deg with fairing |
| Max Depth | Low frequency- 914 m (3000 feet), High frequency- 304 m (1000 feet) |
| Mounting Style | Thru-Hull with Fairing |
| Power Rating | 1 kW |
| Single or Dual Frequency | CHIRP-Ready Dual-Band |
| Transducer Functions | Depth, Temperature |
| Usable Shaft Length | 121 mm (4.75) |
What's in the Box:
- B265C-LH-MM Transduer
- High Speed Fairing Block
- High Speed Fairing Block Bolt Kit
- MMC-12F Cable "
