Airmar

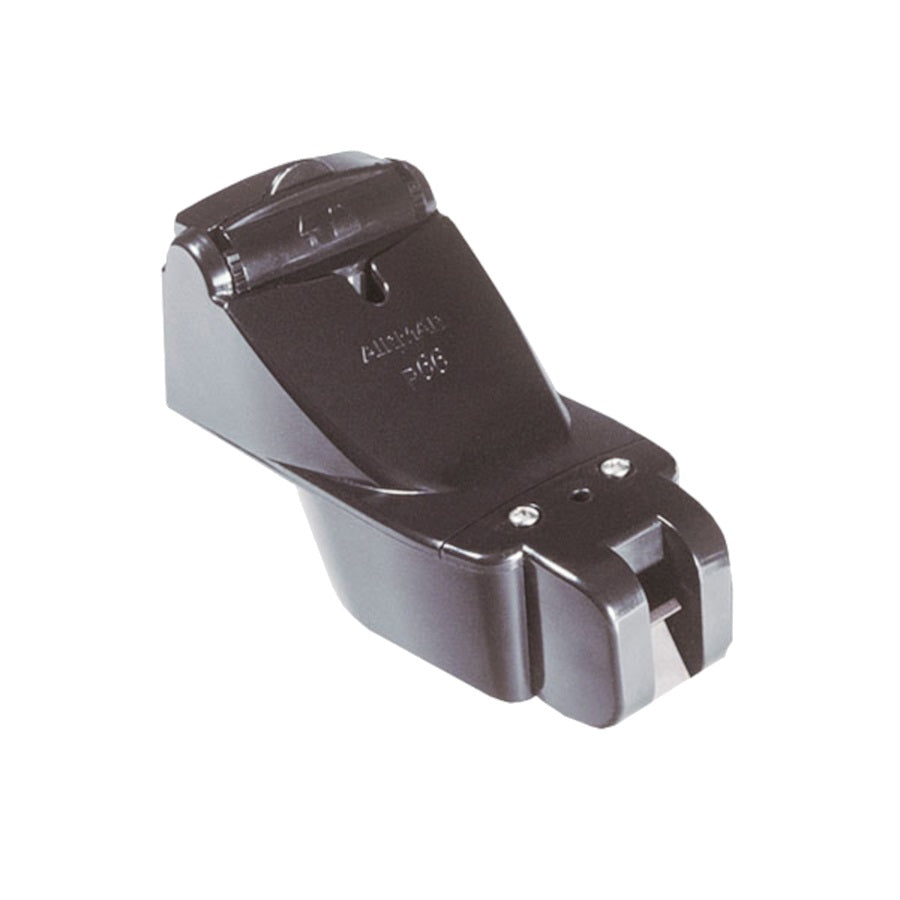

Airmar P66 50/200kHz 600W Depth Speed and Temperature with Furuno 10-Pin - P66-10F
$219.00
$249.99
Part # AIRP6610F
Available for purchase
Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Product details
Furuno P66-10F 50/200kHz Depth Speed and Temperature Transom Mount Transducer with Furuno 10-Pin Connector
Model: P66-10F- Depth, speed, and fast-response water-temperature sensing
- 600 W of power
- 50 kHz with a 45 deg beamwidth for depth performance to 353 m (1200 feet)
- 200 kHz with a 12 deg beamwidth for depth performance to 206 m (700 feet)
- Recessed water-flow channel protects paddlewheel from obstructions
- Plastic release bracket protects sensor from frontal impact
- Sensor can be removed from bracket without tools for easy service or storage
- Chemical and impact-resistant plastic housing
The P66S TRIDUCER(R) Multisensor combines depth, speed, and temperature functions in one housing. And it features our 50/200 kHz, dual-frequency, ceramic element. This hydrodynamic housing with its rounded nose reduces the turbulence under the transducer's acoustic face for accurate high-speed readings and clear display images. It is Airmar's best TRIDUCER transom mount for boats up to 8 m (25 feet) long.
Specifications| Layered plastic urethane (LPU) | |
| Cable-Length | 10 m (33 feet) |
| Connector | Furuno 10-Pin |
| Conventional Beam | 45 deg/12 deg |
| Frequency Band | 50/200 kHz |
| Max Depth | Low frequency- 366 m (1200 feet), High frequency- 206 m (700 feet) |
| Mounting Style | Transom |
| Power Rating | 600 W |
| Functions | Depth, Speed, Temperature |
