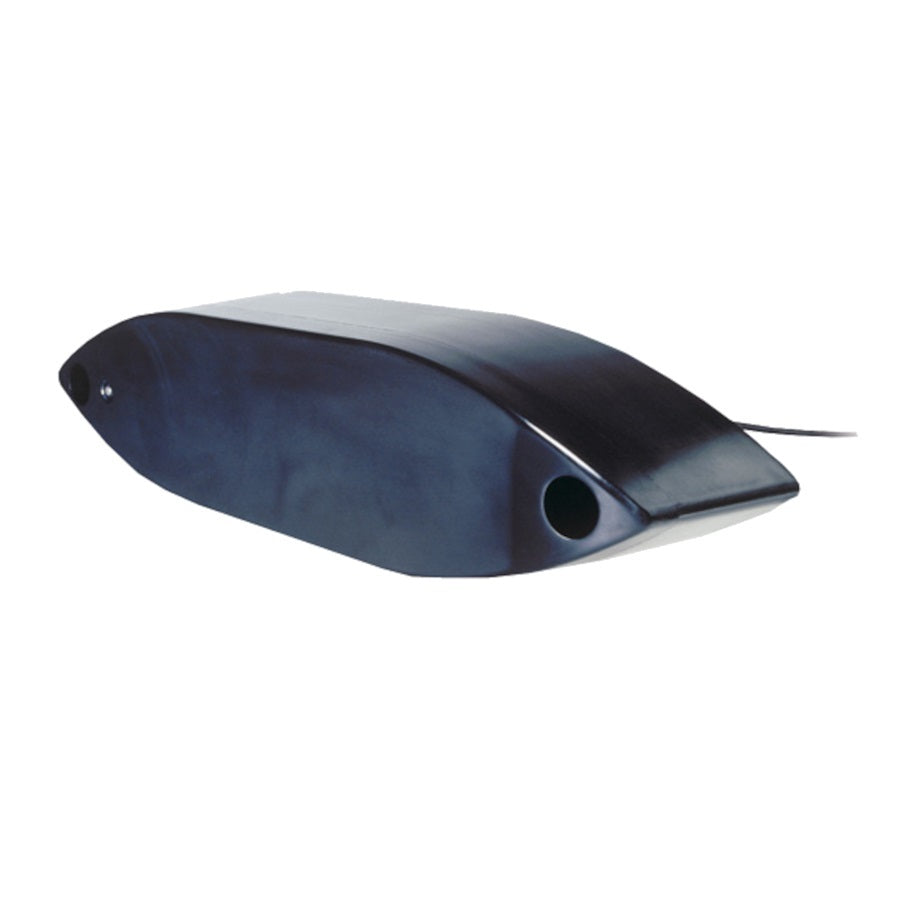

Airmar R509C-LM Low/Med Chirp 3KW Thru-Hull Mount Depth/Temp No Connector - R509C-LM

Airmar R509 Low-Medium Chirp, 3kW, w/FB, No Connector, DT

• Depth and fast-response water-temperature sensing
• 2 to 3 kW of power for exceptional deep-water performance
• Low frequency: 28 to 60 kHz, 23 deg to 9 deg port-starboard beamwidth, 11 deg to 5 deg fore-aft beamwidth, Maximum depth of 3048 m (10000 feet)
• Medium frequency: 80 to 130 kHz, 13 deg to 8 deg beamwidth, Maximum depth of 914 m (3000 feet)
• 82 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 38, 50, 88, and 107 kHz plus everything else in the bandwidth
• Urethane housing with fairing for optimal performance
• Patented Xducer ID(R) technology

Having the right tool for the job makes the job easier and gives better results. The right tool for covering deep-water haunts of swordfish, tuna, and other species is a 2-3 kW, low and medium-frequency transducer. The Chirp-ready R509LM delivers the deep-water performance of the low frequency down to 3048 m (10000 feet) plus the detailed returns produced by the narrower beams of the medium band.

Chirp technology shows 5 to 10 times-greater detail and resolution than conventional frequencies. The R509LM transmits across the low-frequency bandwidth of 28 to 60 kHz and operates in the medium-frequency range of 80 to 130 kHz. This transducer delivers up to 82 kHz of total bandwidth in a single installation.
