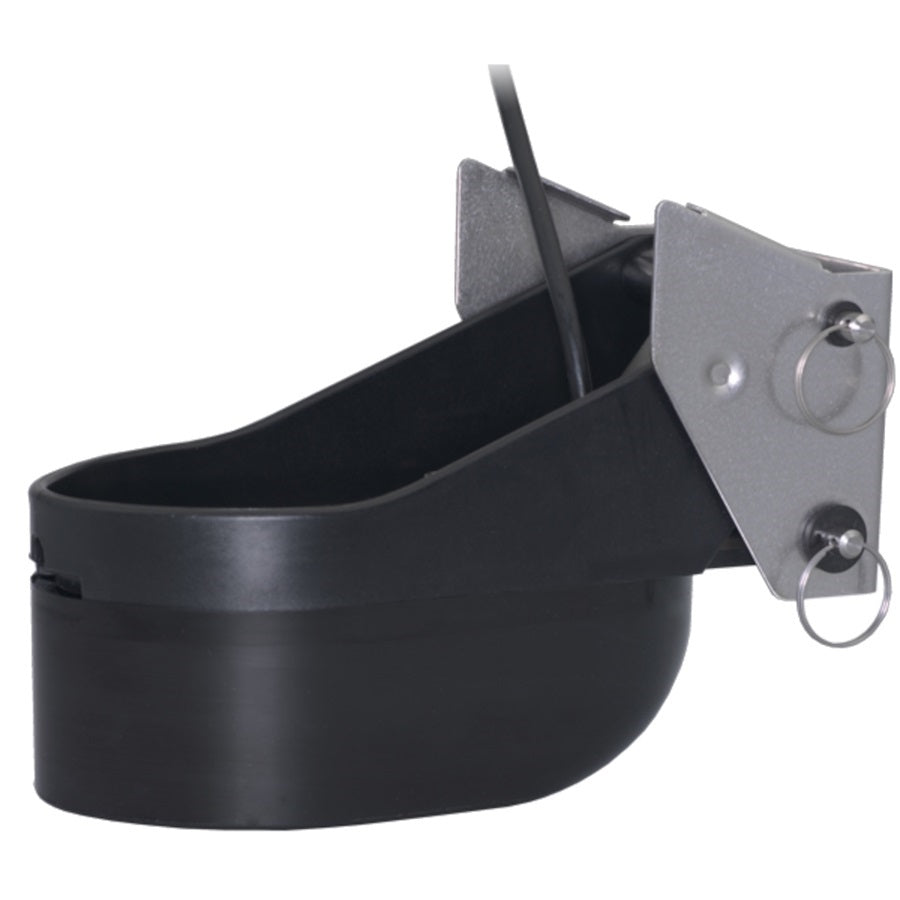

Airmar TM185C Transducer Medium CHIRP Ultra Wide With Humminbird 21-Pin MMC - TM185C-MW-21HB
Currently unavailable
Airmar TM185MW Medium Ultra-Wide Chirp-ready Transom Mount with MMC-21HB Humminbird 21-Pin MMC Cable
Model: TM185C-MW-21HB- Depth and fast-response water-temperature sensor
- 1 kW with depth tracking down to 400 m (1,300 feet)
- Medium frequency: 60-100 kHz
- 57 deg to 73 deg beamwidth (port/starboard)
- 16 deg average fore/aft
- 40 kHz of total bandwidth from one transducer
- Medium frequency for superior mid-depth performance and excellent fish-target separation
- Simple installation on transom of the boat
- Great performance at boat speeds below 30 knots
- Easy maintenance and low-cost replacement
- Exclusive Xducer ID(R) technology
AIRMAR's innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready TM185 Medium Ultra-Wide (MW) Transom Mount transducer. The TM185MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73 deg port-starboard to 16 deg average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column. Airmar's new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz.
The TM185MW Transom Mount is a 1 kW transducer housed in one of AIRMAR's most popular housings. Transom models are best suited for small and trailered vessels where a thruhull installation is not practical. Simple to install and ideal for small trailered vessels where a thru-hull may interfere with loading.
Specifications| 1 kW | |
| Transom Angle | 2 deg to 22 deg |
| Functions | Depth, Temperature |
| Acoustic Window | Urethane |
| Cable-Length | 9 m (30 feet) |
| Freq Med Wide | 60-100 kHz |
| Housing | Urethane/Stainless Bracket |
| Max Depth | 400 m (1300 feet) |
| Medium-Wide Beamwidth | 57 deg to 73 deg beam p/s 16 deg average f/a |
| Mounting Style | Transom |
| Single or Dual Frequency | CHIRP-Ready Single-Band |
| Weight | 4.2 kg (9.2 lb.) |
What's in the Box:
- TM185MW Medium Ultra-Wide Chirp-ready Transom Mount
- MMC-21HB Humminbird 21-Pin MMC Cable
