Ancor

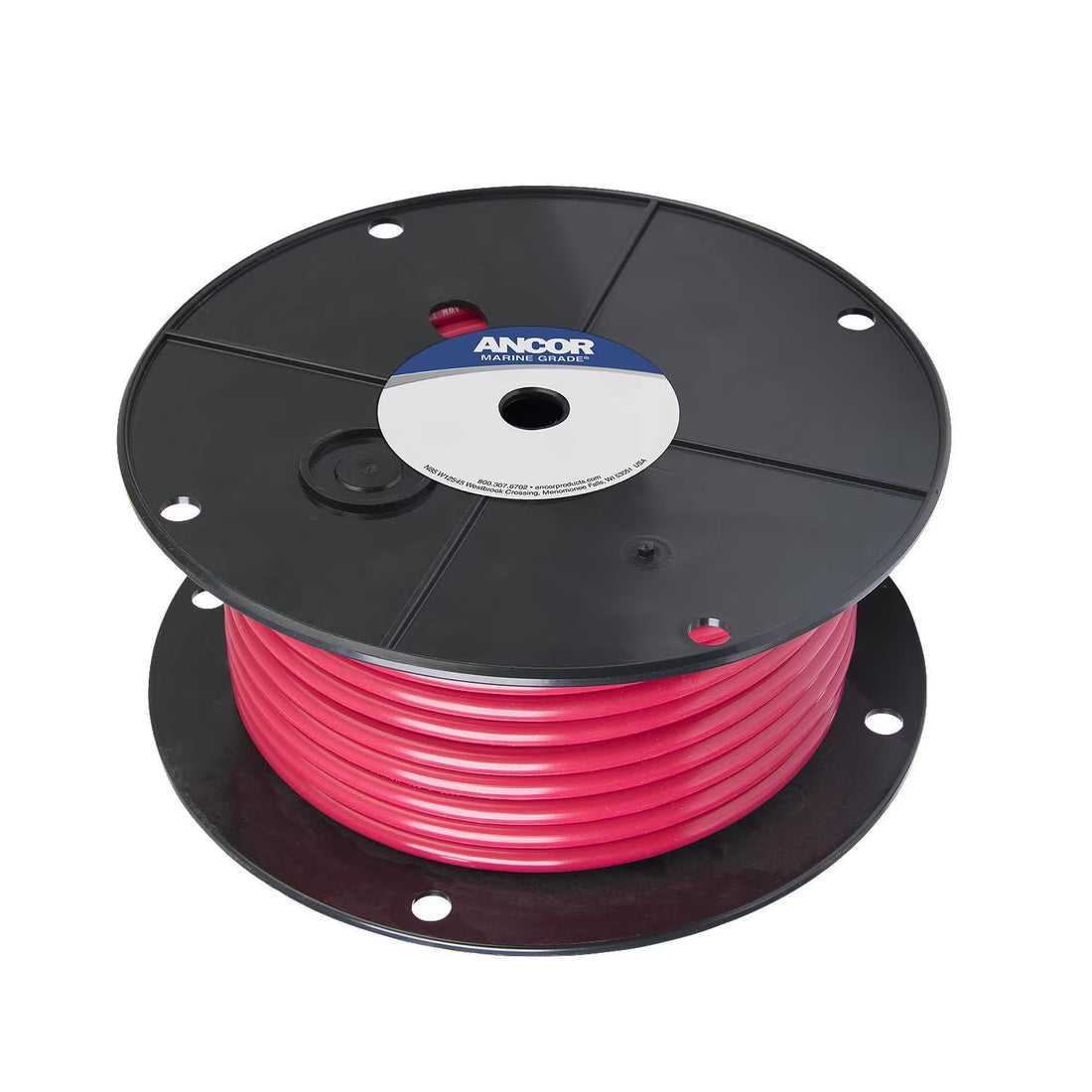

Ancor 1/0 Red 100ft Spool Tinned Copper - 116510
$1,123.87
Part # ANC116510
UPC: 091887116304
Currently unavailable
Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Available to order. This item will ship once it is back in stock.
Product details
Ancor Tinned Copper Battery Cable, 1/0 AWG (50mm2), Red - 100ft
Model: 116510
Ancor Marine Grade wire products are the longest lasting and most rugged available, exceeding UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46) standards. They are constructed with premium vinyl insulation that is rated at 600 volts, 105 deg C dry and 75 deg C wet, stays flexible even in extreme cold (-40 deg F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation. Highest quality ultra flexible (Type 3) tinned copper stranding provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing.
Specifications
| Wire Gauge | 1/0 AWG |
| Color | Red |
| Length | 100 ft |
| Conductor | Tinned copper, Type 3 ultra flexible stranding |
| Stranding | 1064 strands of 30 AWG |
| Nominal O.D. | 9/16" (14.3 mm) |
| Wire Diameter | 10.5 mm |
| Minimum Bend Radius | 4-1/2" (11.4 cm) |
| Circular Mil Area | 105,600 |
| Cross-Sectional Area | 53.49 mm² |
| Resistance | 0.10 ohms per 1000 ft |
| Weight per 1000 ft | 437 lbs (198 kg) |
| Voltage Rating | 600V |
| Temperature Rating | 221°F / 105°C dry, 167°F / 75°C wet |
| Cold Flexibility | Stays flexible to -40°F / -40°C |
| Standards | Exceeds UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46) |
