Blue Sea Systems

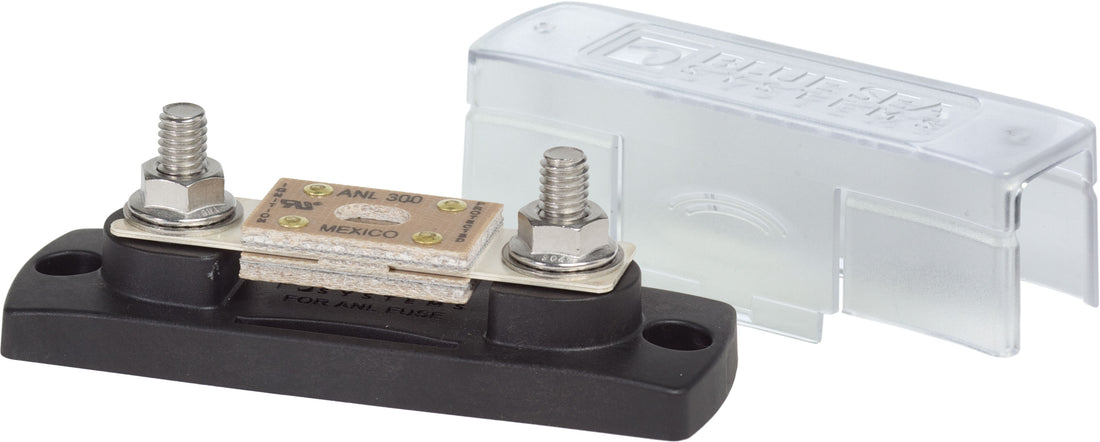

Blue Sea 5005 ANL Fuse Block with Insulating Cover 35 to 300 Amp - 5005-BSS
$30.24
Blue Sea Systems ANL Fuse Block with Insulating Cover - 35 to 300A
Model: 5005-BSS- Accepts 5/16 (M8) ring terminals
- For use on systems up to 32 Volts DC
- Swing out design allows replacement of the fuse without removing fasteners
- Stainless steel studs provide resistance to corrosion and high torquing for excellent electrical contact
- UL 94-V0 base resists high heat
- Insert molded studs ensure secure fuse mounting
- Insulating cover satisfies ABYC/USCG requirements
- Cover breakouts allow wire access in any direction
- Fuse sold separately
| 32V DC | |
| Base Material | Reinforced Polycarbonate |
| Fuse Mounting Blocks | Tin-Plated Copper |
| Maximum Cable Size | 2/0 AWG |
| Maximum Torque | 110 in-lb (12.43 Nm) |
| Terminal Stud Size | 5/16 in - 18 (M8) |
