Blue Sea Systems
Blue Sea 5006100 MAXI Fuse Block 30 to 80 Amp Ignition Protected - 5006100-BSS
$54.99
Part # BSS5006100
UPC: 632085500610
Currently unavailable
Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Available to order. This item will ship once it is back in stock.
Product details

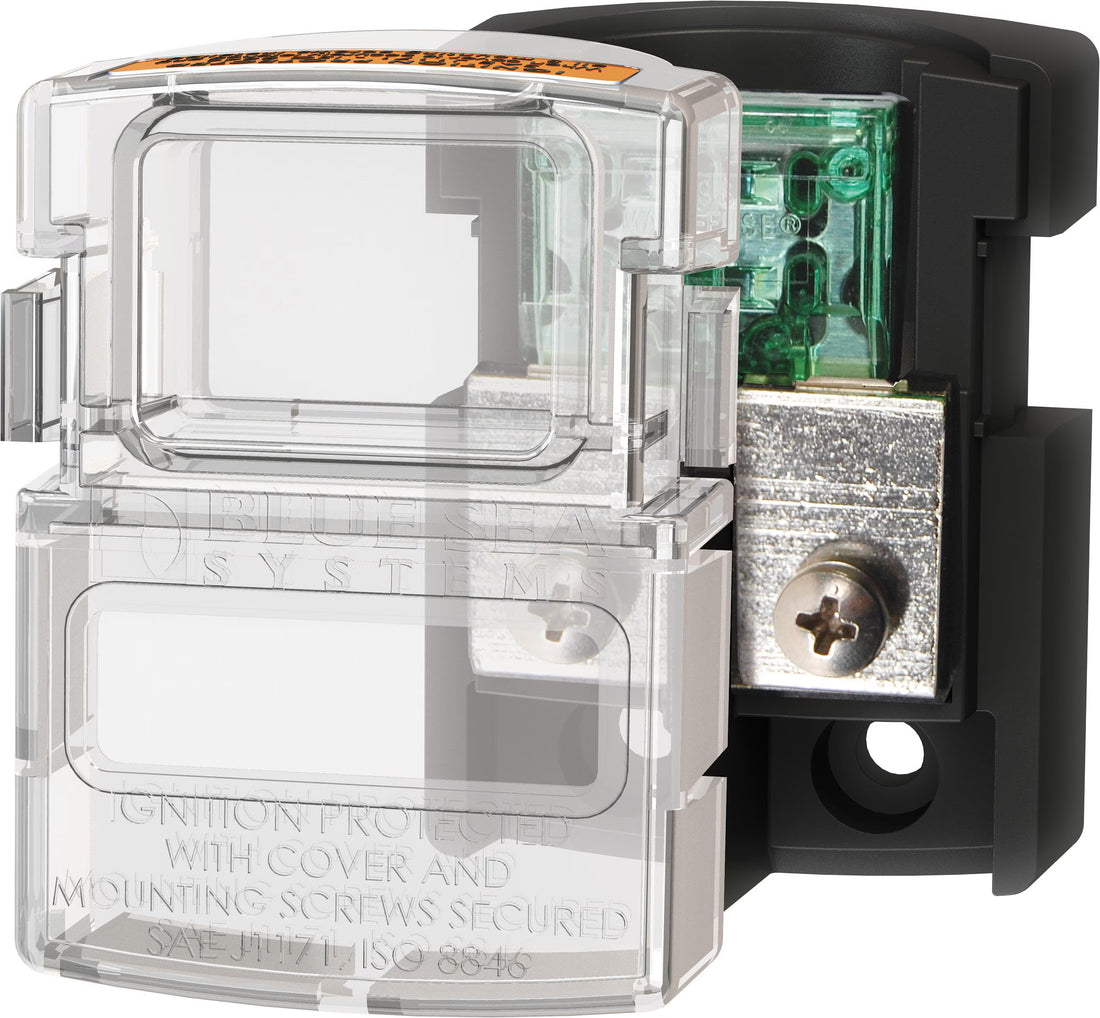

Blue Sea Systems MAXI Fuse Block
Model: 5006100-BSS
- Snap-on terminal cover insulates all conductive parts, satisfying ABYC/USCG requirements
- Cover breakouts allow wires from sides or bottom
- Terminal screws compress fuse blades within blocks for low resistance connections
- Ignition Protected
- Label recess accepts large format label
- Fuses sold separately
Specifications
| Maximum Amperage | 80A |
| Maximum Voltage | 32V DC |
| Mounting | #10 Screws |
| Screw Terminal Torque | 25 in-lb (2.82 Nm) |
| Wire Size | 14 - 4 AWG |
| Weight | 0.25 lb (0.11 kg) |
