Blue Sea Systems

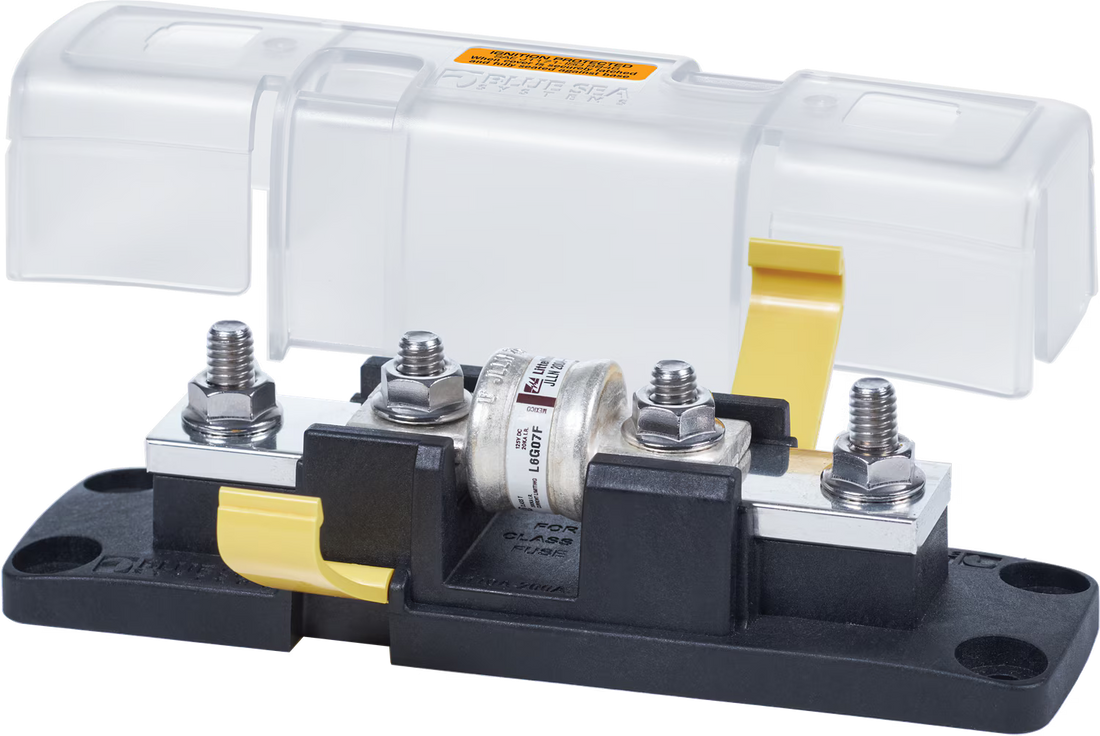

Blue Sea 5007100 Class T Fuse Block with Insulating Cover 110 to 200 Amp - 5007100-BSS
$114.99
Part # BSS5007100
UPC: 632085500719
Currently unavailable
Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Available to order. This item will ship once it is back in stock.
Product details
Blue Sea Systems Class T Fuse Block with Insulating Cover - 110 to 200A
Model: 5007100-BSS
- Four stud design provides ample access around connecting stud to install large cable lugs without obstruction from the fuse
- Insulating cover satisfies ABYC/USCG insulation requirements
- Cover breakouts allow wire access in any direction
- Stud design ensures secure fuse mounting even with high heat
- Stainless steel studs provide resistance to corrosion and high torque
- One-piece stainless flange nuts ensure safe and secure connections
- UL 94-V0 base resists high heat
- Ignition Protected
Allows the use of Class T fuses for fast acting circuit protection of inverters and other electronics.
Specifications
| Cable Size | Up to 4/0 AWG |
| Ignition Protected | Yes |
| Maximum Amperage | 160A |
| Maximum Voltage | 160V DC |
| Fuse Mounting Blocks | Tin-Plated Copper |
| Maximum Torque | 72 in-lb (8.13 Nm) |
| Mounting Fastener Size | 1/4 in or M6 Hardware |
| Terminal Stud Size | 1/4 in-20 (M6) |
| Weight | 1.10 lb (0.5 kg) |
