Blue Sea Systems
Blue Sea 5034 ST Blade Fuse Block - 12 Circuits - 5034-BSS
$88.54
Part # BSS5034
UPC: 632085050344
Currently unavailable
Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Available to order. This item will ship once it is back in stock.
Product details

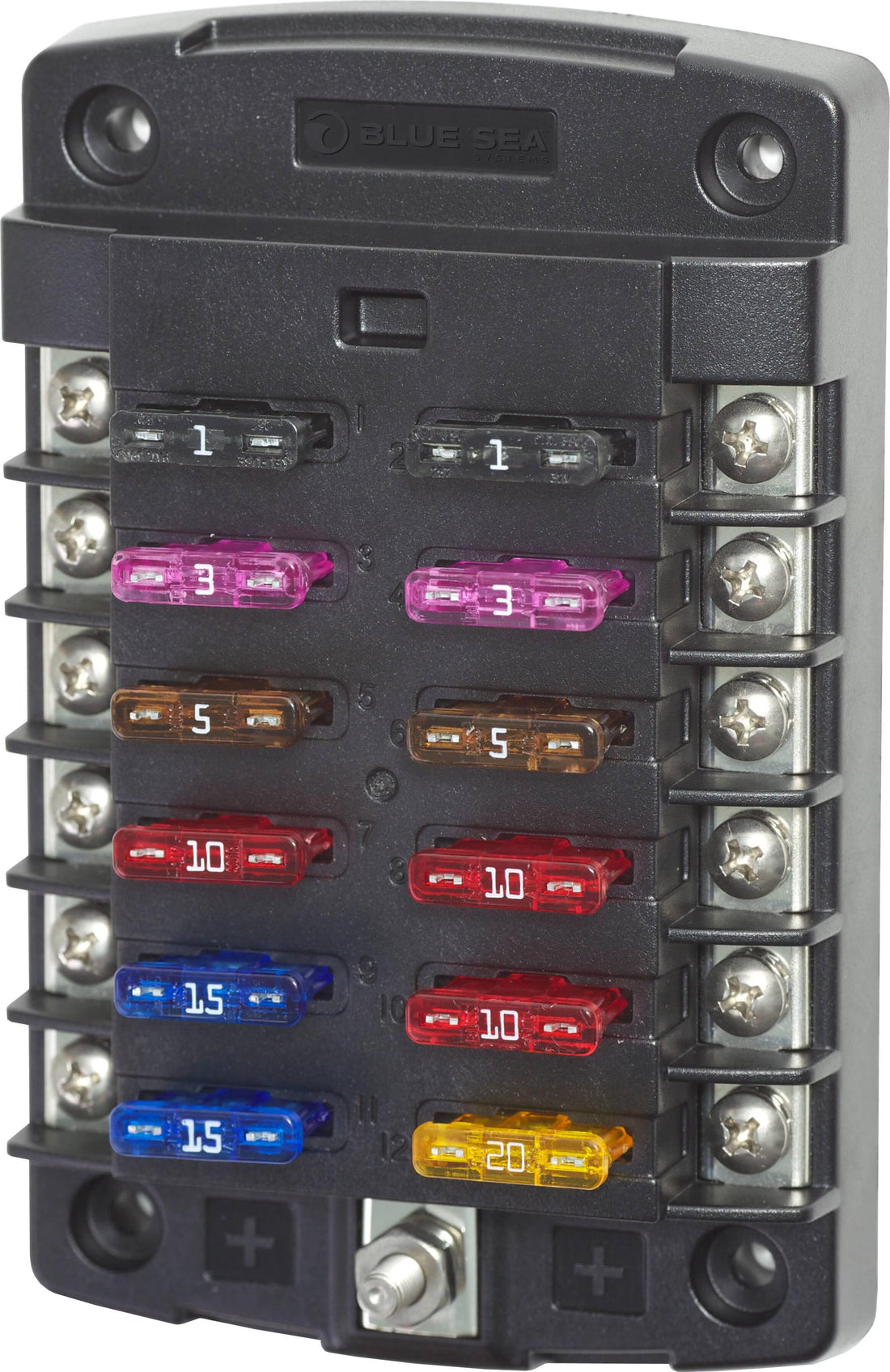

Blue Sea Systems ST Blade Fuse Block - 12 Circuits
Model: 5034-BSS
- Positive distribution bus with #10-32 stud
- Can be used for 24-hour circuits
- Tin-plated copper buses and fuse clips
- Accepts ring or snap fork type terminals
- Accepts ATO® and ATC® fast acting blade fuses
- Fuses sold separately
Consolidates branch circuits and in-line fuses.
Specifications
| Circuits | 12 |
| Maximum Amperage | 100A per block, 30A per circuit |
| Maximum Voltage | 32V DC |
| Mounting | #8 Screw (M4) |
| Positive Bus | #10-32 Stud |
| Recommended Torque | 24 in-lb (2.71 Nm) |
| Screw Terminal Torque | 18 in-lb (2.03 Nm) |
| Screw Terminal Type | #8-32 Screws with captive star lock washer |
| Weight | 0.60 lb (0.27 kg) |
