Blue Sea Systems

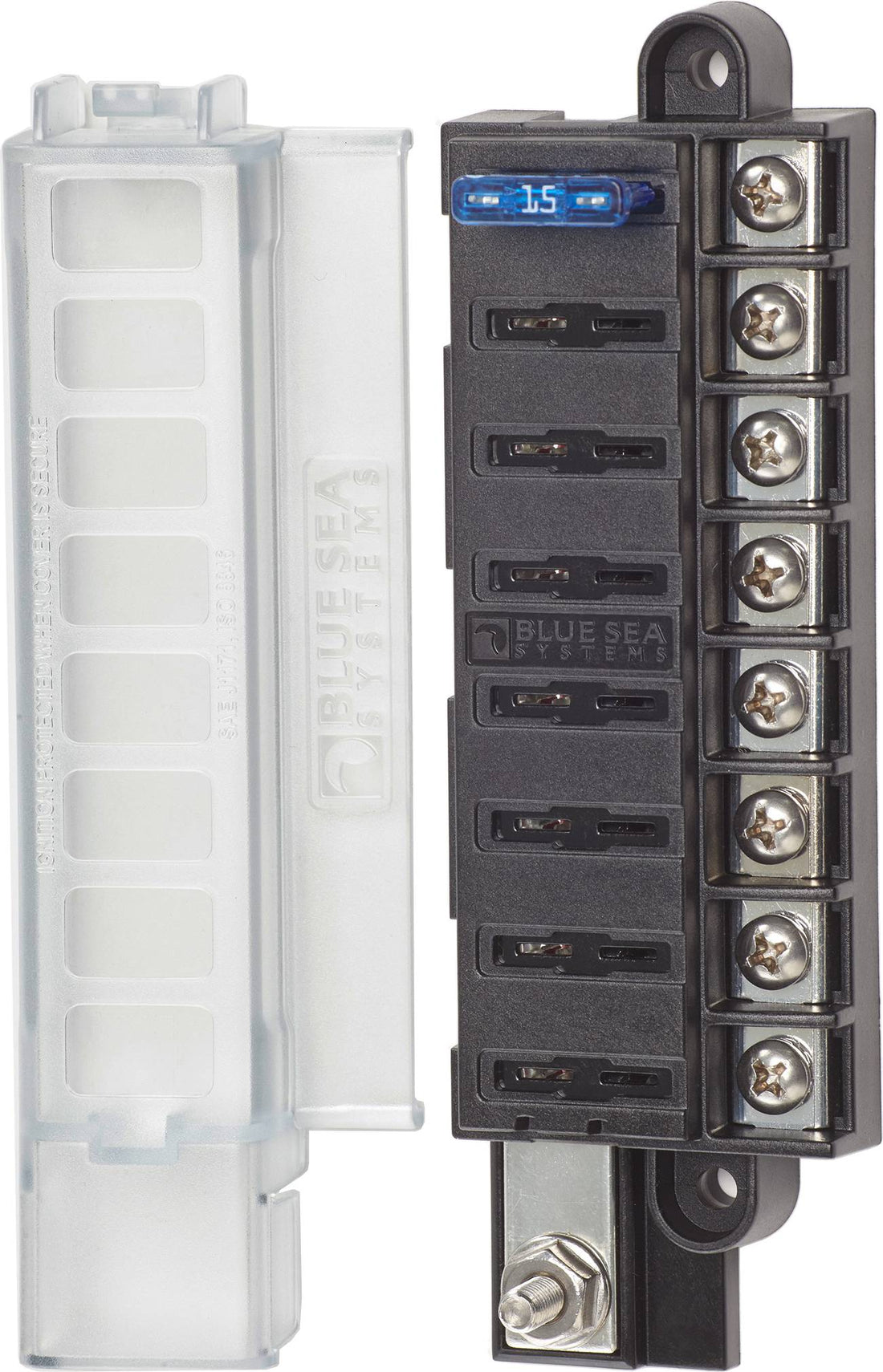

Blue Sea 5046 8-Circuit Fuse Block ST ATO/ATC with Cover - 5046-BSS
$53.28
$73.99
Part # BSS5046
UPC: 632085050467
Available for purchase
Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Product details
Blue Sea Systems ST Blade Compact Fuse Blocks - 8 Circuits
Model: 5046-BSS- Ignition protected when cover is secure -meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
- Single side design allows wire entry from one side to minimize footprint
- Insulating cover meets ABYC/USCG insulation requirements
- Tin-plated copper buses and fuse clips
- Accepts ring or snap fork type terminals
- Includes 8 write-on circuit labels
- Fuses sold separately
| 8 | |
| Maximum Amperage | 100A per block 30A per circuit |
| Maximum Voltage | 32V DC |
| Mounting | #8 Screw (M4) |
| Terminal Stud Torque | 24 in-lb (2.71 Nm) |
| Screw Terminal Torque | 18 in-lb (2.03 Nm) |
| Screw Terminal Type | #8-32 Scews with captive star lock washer |
| Terminal Stud Size | #10-32 |
