Blue Sea Systems

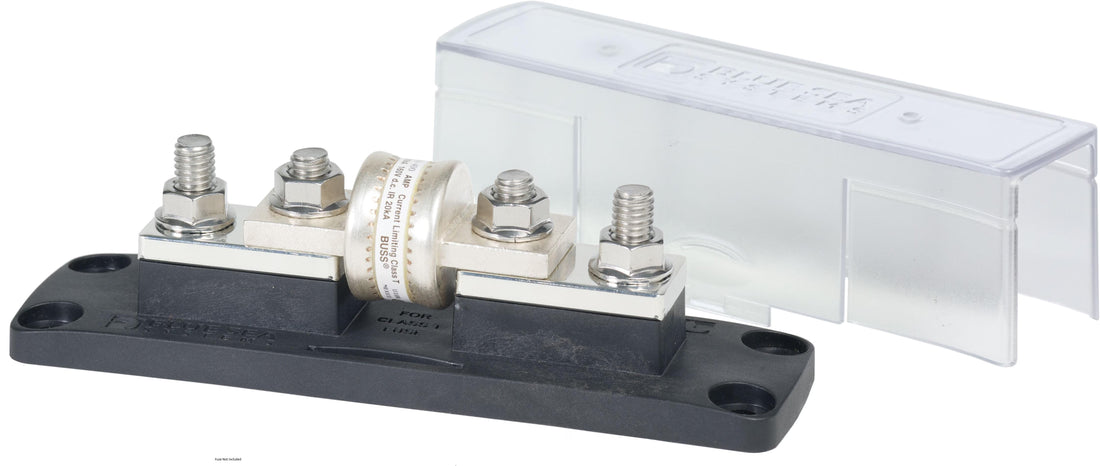

Blue Sea 5502 Fuse Block ClassT 225-400A - 5502-BSS
$50.71
Blue Sea Systems Class T Fuse Block with Insulating Cover - 225 to 400A
Model: 5502-BSS- The fuse system recommended by most inverter manufacturers for high speed response to short circuits
- Clear insulating cover, satisfies ABYC/USCG requirements
- For use on systems up to 160 Volts DC
- Large 3/8"-16 stud terminals accept ring terminals for wire up to 4/0 AWG
- Large heat dissipating tin-plated copper mounting blocks
- Fuse sold separately
| Ignition Protected | no |
| Maximum Amperage | 400A |
| Maximum Voltage | 160V DC |
| Fuse Mounting Blocks | Tin-Plated Copper |
| Maximum Cable Size | 4/0 AWG |
| Maximum Torque | 190 in-lb (21.47 Nm) |
| Mounting Holes | Accept 1/4 (M6) Screw |
| Terminal Stud Size | 3/8" - 16 (M10) |
What's in the Box:
- Fuse Holder
- Insulating Cover
