Blue Sea Systems

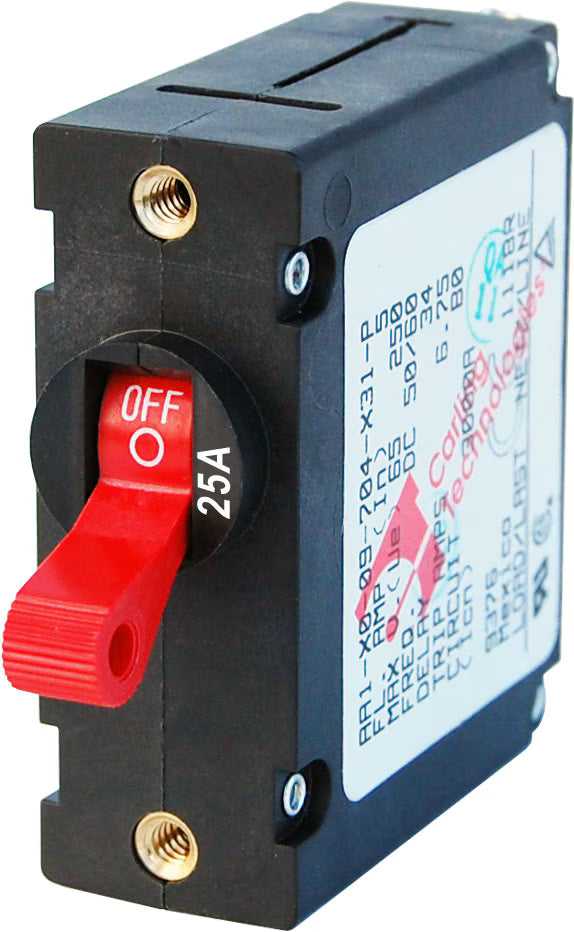

Blue Sea 7217 Circuit Breaker AA1Toggle 25A with Red Toggle - 7217-BSS
$21.83
$30.99
Part # BSS7217
UPC: 632085072179
Available for purchase
Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Product details
Blue Sea Systems A-Series Red Toggle Circuit Breaker - Single Pole 25A
Model: 7217-BSS
- Meets American Boat and Yacht Council (ABYC) standards
- The industry standard circuit breaker for Blue Sea Systems' electrical panels
- Combines switching and circuit protection into a single device
- "Trip Free" design cannot be held "ON" during fault current condition
Specifications
| Amperage | 25A AC 25A DC |
| Color | Red |
| Actuator Style | Toggle |
| Poles | 1 |
| Maximum Voltage | 240V AC 32V DC |
| Circuit Breaker Type | Magnetic Hydraulic - trip free |
| Interrupt Capacity | 3000A @ 120V AC 1500A @ 240V AC [TUV] 3000A @ 240V AC [UL 1077] 7500A @ 65V DC |
| Minimum Operating Temperature | -40° C |
| Maximum Operating Temperature | 85° C |
| Mounting Screw | #6-32 Stainless Steel |
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
| Screw Terminal Torque | 14 in-lb (1.58 Nm) |
| Switching Cycles | 10000 |
| Terminal Screws | #10-32 Stainless Steel |
