Blue Sea Systems

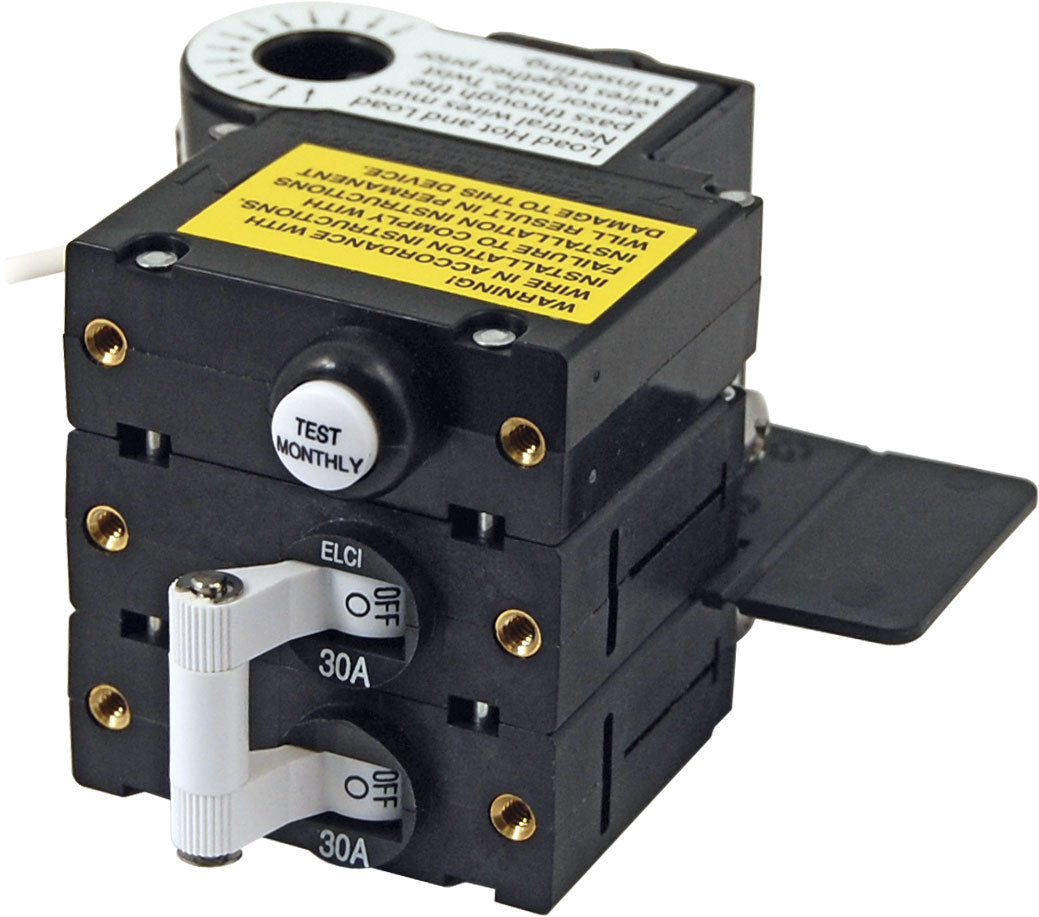

Blue Sea A-Series ELCI 30A 120v AC Double Pole Main Circuit Breaker - 3106100-BSS
$341.23
$544.99
Part # BSS3106100
UPC: 632085310615
Available for purchase
Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Product details
Blue Sea A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A
Model: 3106100-BSS- Trips on short circuit, overload, or leakage to ground
- Front panel mount-installed in a power distribution panel
| 30A | |
| Actuator Style | Toggle |
| Poles | 2 |
| Ignition Protected | Yes |
| Maximum Voltage | 240V AC 120V AC per pole |
| Circuit Breaker Type | Magnetic Hydraulic - trip free |
| nterrupt Capacity | 5000A |
| Minimum Operating Temperature | -35 deg C |
| Maximum Operating Temperature | v |
| Leakage Trip Amps | 30mA |
| Mounting Screw | #6-32 Stainless Steel |
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
