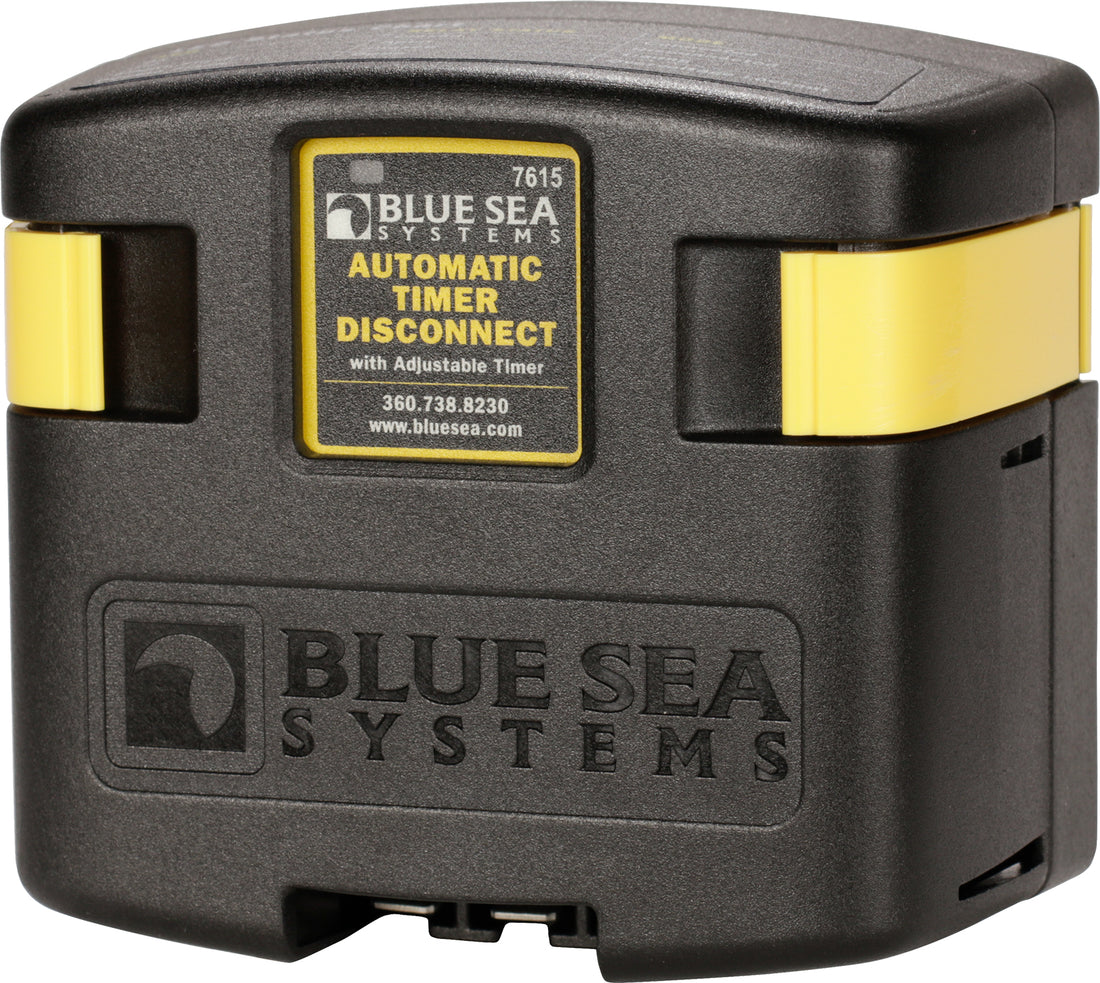

Blue Sea Automatic Timer Disconnect 12vDC - 7615-BSS
$97.72
$164.99
Part # BSS7615
UPC: 632085076153
Available for purchase
Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Product details
Blue Sea Systems
Model: 7615-BSS- Timer Disconnect - 12V signal triggers relay to connect battery power to devices
- Timer Disconnect - When signal is removed the timer is activated and will disconnect devices after a preset time
- Timer Disconnect - Timer ranges from 15 minutes to 4 hours
- Low Voltage Disconnect -12V signal triggers relay to connect battery power to devices.
- After 12V signal is removed, device senses low battery voltage and automatically disconnects devices.
- Low voltage setting can be used in conjunction with Timer Disconnect. Low voltage will disconnect devices prior to preset time to preserve battery power
| 12V DC | |
| Amperage Operating Current | 175mA (closed) 4mA (open) |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Continuous Rating | 120A |
| Intermittent Rating | 210A (5 Min) |
| Cable Size to Meet Ratings | 1 AWG (50mm2) |
| Charge Sense Connect | 13.0V (3 sec) |
| Charge Sense Disconnect | 12.75V (10 sec) |
| Disconnect Time | 5 sec, 15 min, 30 min, 1 hr, 1.5 hr, 2hr, or 4hr |
| Input Voltage Range | 9.5-16V |
| Low Voltage Disconnect | 11.0V (10 sec) 11.5V (10 sec) 12.0V (10 sec) |
| Maximum Cable Size | 1/0 AWG (50mm2) |
| Stud Material | Tinned Copper |
| Terminal Ring Diameter Clearance | 1.12in (28.45 mm) |
| Terminal Stud Size | 3/8-16 (M10) |
| Over Voltage Lockout | 16.0V (5 sec) |
