Blue Sea Systems

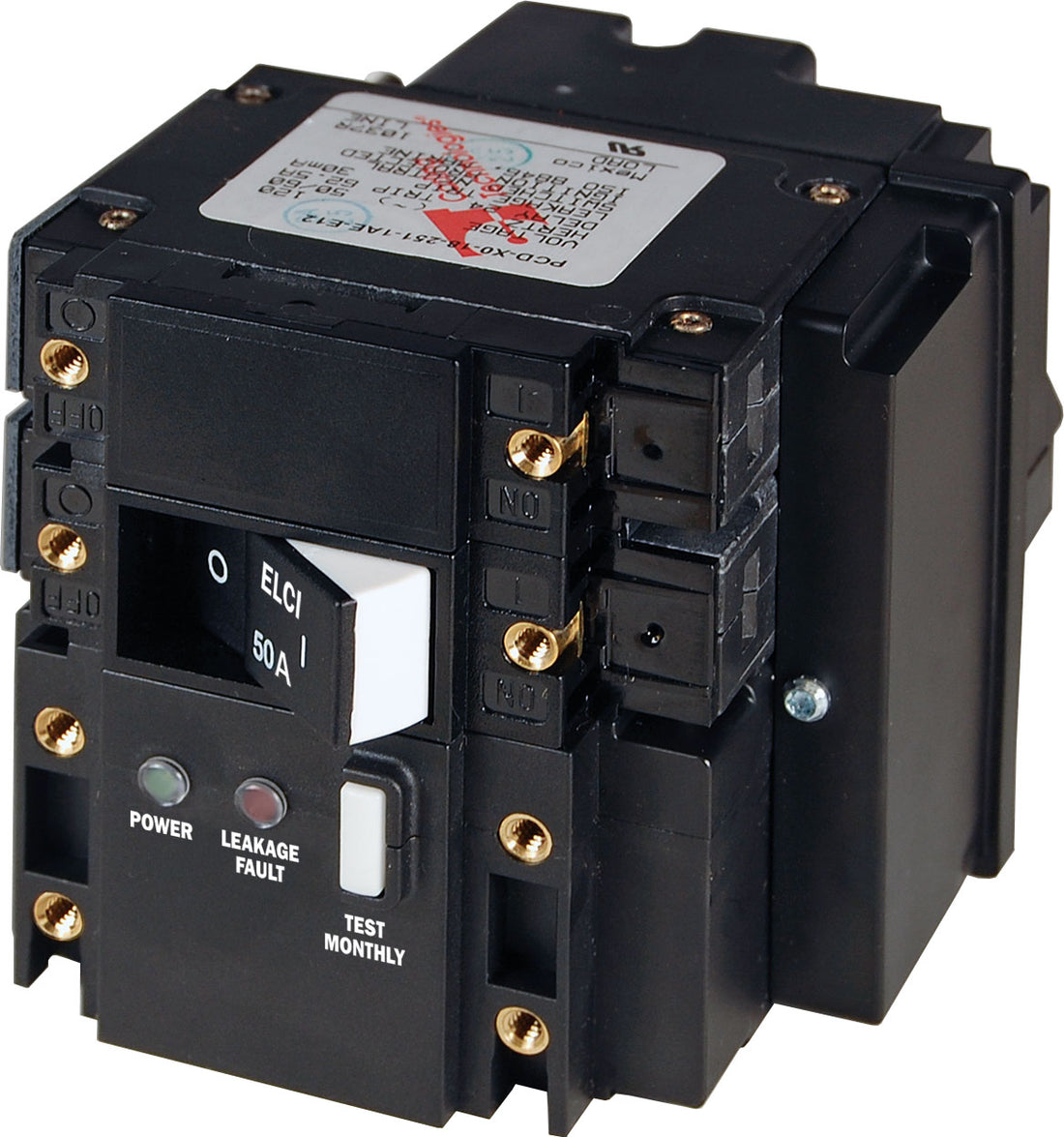

Blue Sea C-Series ELCI 50A 120v AC Double Pole Main Circuit Breaker - 3103-BSS
$450.17
$718.99
Part # BSS3103
UPC: 632085031039
Available for purchase
Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Product details
Blue Sea C-Series ELCI Main Circuit Breaker - Double Pole 120V AC 50A
Model: 3103-BSS- Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
- Meets UL 1500 external ignition protection requirements
- Trips on short circuit, overload, or leakage to ground
- Front panel mount-installed in a power distribution panel
| 50A | |
| Actuator Style | Flat Rocker |
| Poles | 2 |
| Ignition Protected | Yes |
| Maximum Voltage | 120V AC per pole |
| Circuit Breaker Type | Magnetic Hydraulic - trip free |
| Interrupt Capacity | 5000a |
| Minimum Operating Temperature | -35 deg C |
| Maximum Operating Temperature | 66 deg C |
| Leakage Trip Amps | 30mA |
| Mounting Screw | #6-32 Stainless Steel |
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
| Switching Cycles | 10000 |
| Weight | 0.85lb (0.39 kg) |
