Blue Sea Systems
Blue Sea C-Series Flat Rocker Circuit Breaker Double Pole 100A AC - 7564-BSS
$143.74
Part # BSS7564
UPC: 632085075644
Currently unavailable
Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Available to order. This item will ship once it is back in stock.
Product details

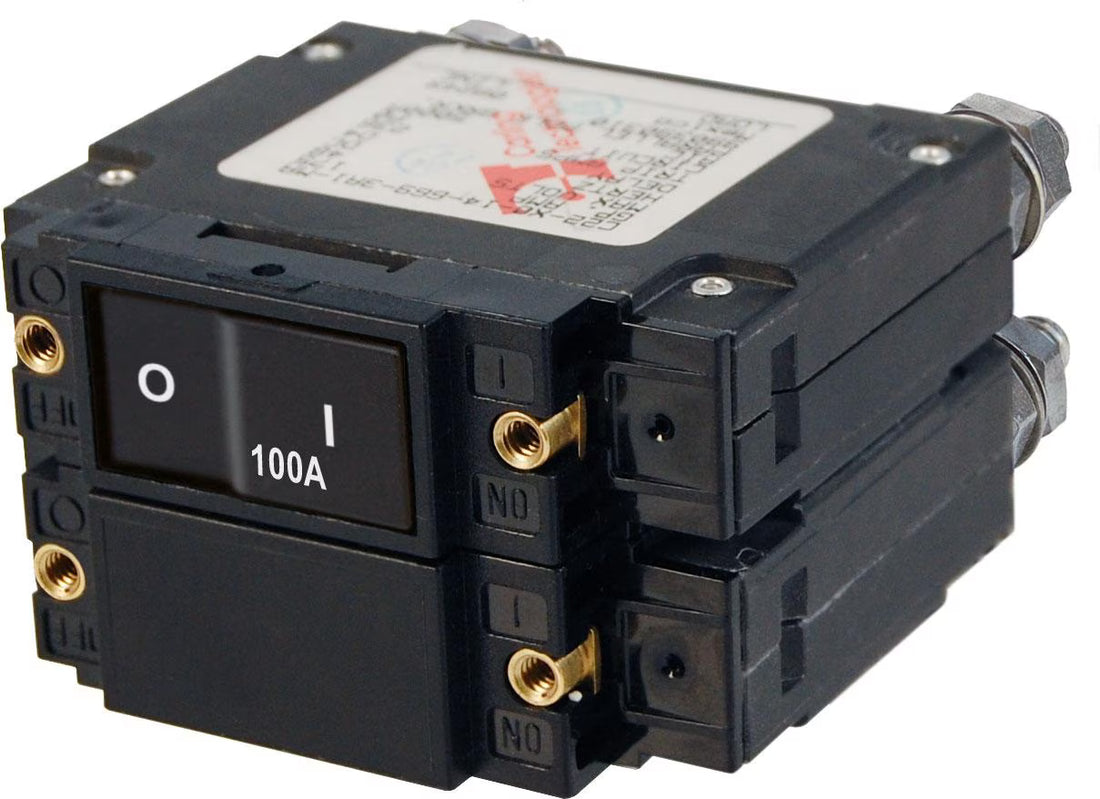

Blue Sea Systems C-Series Flat Rocker Circuit Breaker - Double Pole 100A AC
Model: 7564-BSS- 5,000 Ampere interrupt capacity to meet ABYC requirements for 120/240 Volt main protection
- Double pole can be used as 120 Volt AC main circuit breaker to switch hot and neutral
- Triple pole can be used as 240 Volt AC main circuit breaker to switch both lines (hots) and neutral
- Circuit breakers will trip all poles if any one pole trips
- "Trip Free" design cannot be held "ON" during fault current condition
| Amperage | 100A AC |
| Actuator Style | Flat Rocker |
| Poles | 2 |
| Maximum Voltage | 120V AC / 240V AC |
| Circuit Breaker Type | Magnetic Hydraulic - trip free |
| Terminal Stud | 1/4-20 Tin-Plated Brass |
| Terminal Stud Torque | 35 in-lb (3.95 Nm) |
| Interrupt Capacity | 5000A @ 48V DC |
| Minimum Operating Temperature | -40 deg C |
| Maximum Operating Temperature | 85 deg C |
| Mounting Screw | 6-32 Stainless Steel |
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
| Switching Cycles | 10000 |
| Weight | 0.64lb (0.29 kg) |
