Blue Sea Systems

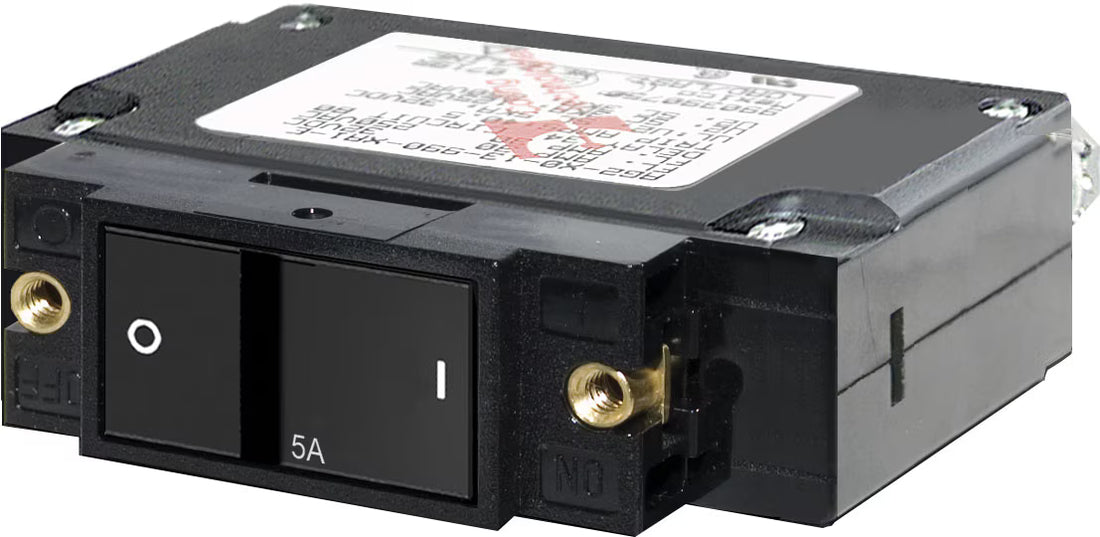

Blue Sea C-Series Flat Rocker Circuit Breaker Single Pole 5A - 7540-BSS
$78.19
Part # BSS7540
UPC: 632085075408
Currently unavailable
Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Available to order. This item will ship once it is back in stock.
Product details
Blue Sea Systems C-Series Flat Rocker Circuit Breaker - Single Pole 5A
Model: 7540-BSS- Rocker actuator is flush in the "ON" position, eliminating the risk of accidental switching
- Color actuator indicates "OFF" position
- Provides overcurrent protection for inverters, bow thrusters, and windlasses
- Combines switching and circuit protection into a single device
- "Trip Free"-cannot be held closed after trip
- Ignition protected-safe for installation aboard gasoline powered boats
| Amperage | 5A AC / 5A DC |
| Actuator Style | Flat Rocker |
| Poles | 1 |
| Maximum Voltage | 240V AC / 48V DC |
| Circuit Breaker Type | Magnetic Hydraulic - trip free |
| Terminal Stud | 1/4-20 Tin-Plated Brass |
| Terminal Stud Torque | 35 in-lb (3.95 Nm) |
| Interrupt Capacity | 3000A @ 120V AC, 3500A @ 240V AC, 5000A @ 32V DC |
| Minimum Operating Temperature | -40 deg C |
| Maximum Operating Temperature | 85 deg C |
| Mounting Screw | 6-32 Stainless Steel |
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
| Switching Cycles | 10000 |
| Weight | 0.30lb (0.14 kg) |
