Blue Sea Systems

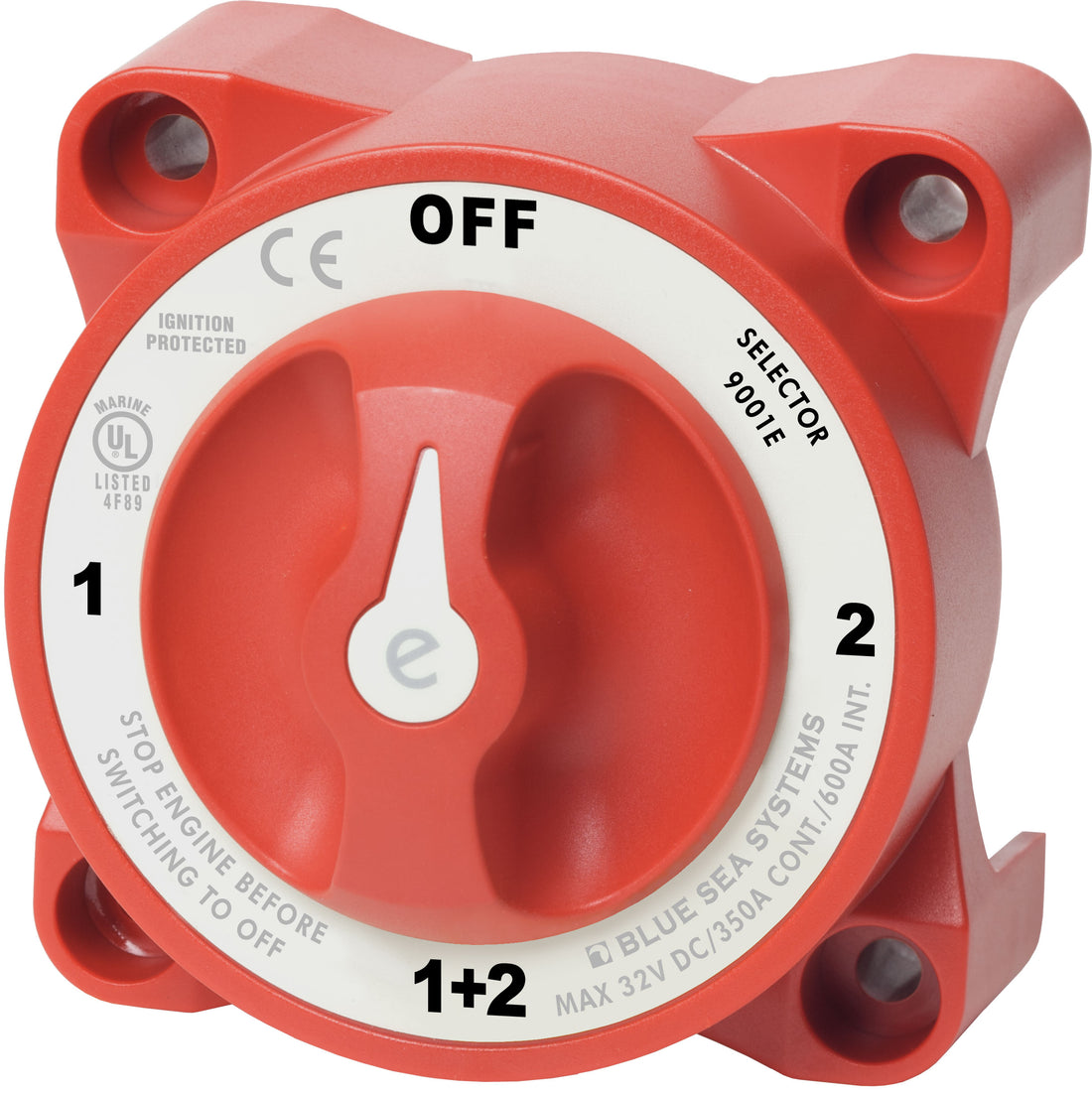

Blue Sea E-Series Battery Switch 1-Off-2-Both - 9001e-BSS
$43.20
$63.99
Part # BSS9001E
UPC: 632085900151
Available for purchase
Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Product details
Blue Sea Systems e-Series Selector Battery Switch
Model: 9001E-BSS- 350 Amps continuous rating for inboard gasoline or diesel engines.
- Tin-plated copper studs for maximum conductivity and corrosion resistance
- Accepts up to 4/0 AWG battery cables
- Studs accepts 3/8 (M10) ring terminals
- 7/8 in (22mm) stud length accepts multiple cable terminals
- Blue Sea Systems one-piece terminal stud design never loosens over time
- Fits most Perko and Guest low amperage battery switch hole patterns
- Case design allows surface or rear panel mounting
- Tactile indicator conveys knob position by feel
- Waterproof - rated IP66 from water projected in powerful jets
- Ignition protected-safe for installation aboard gasoline powered boats
- Make-before-break contact design allows switching without power interruption
Switches isolated battery banks to all loads or combines battery banks to all loads
Specifications| Selector 4 Position | |
| Color | Red |
| Switch Positions | 4 |
| Battery Combine | Yes |
| Alternator Field Disconnect | No |
| Maximum Voltage | 32V DC |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Continuous Rating | 350A |
| Intermittent Rating | 600A (5 min) |
| Cranking Rating 30 sec | 1200A per circuit |
| Battery Inputs | 2 |
| Cable Clearance For 4/0 AWG Cables | 1.10in (27.94 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm2) |
| Mounting Holes | Accept 1/4 in (M6) Screw |
| Stud Material | Tinned Copper |
| Terminal Stud Size | 3/8 in - 16 (M10) |
