Blue Sea Systems

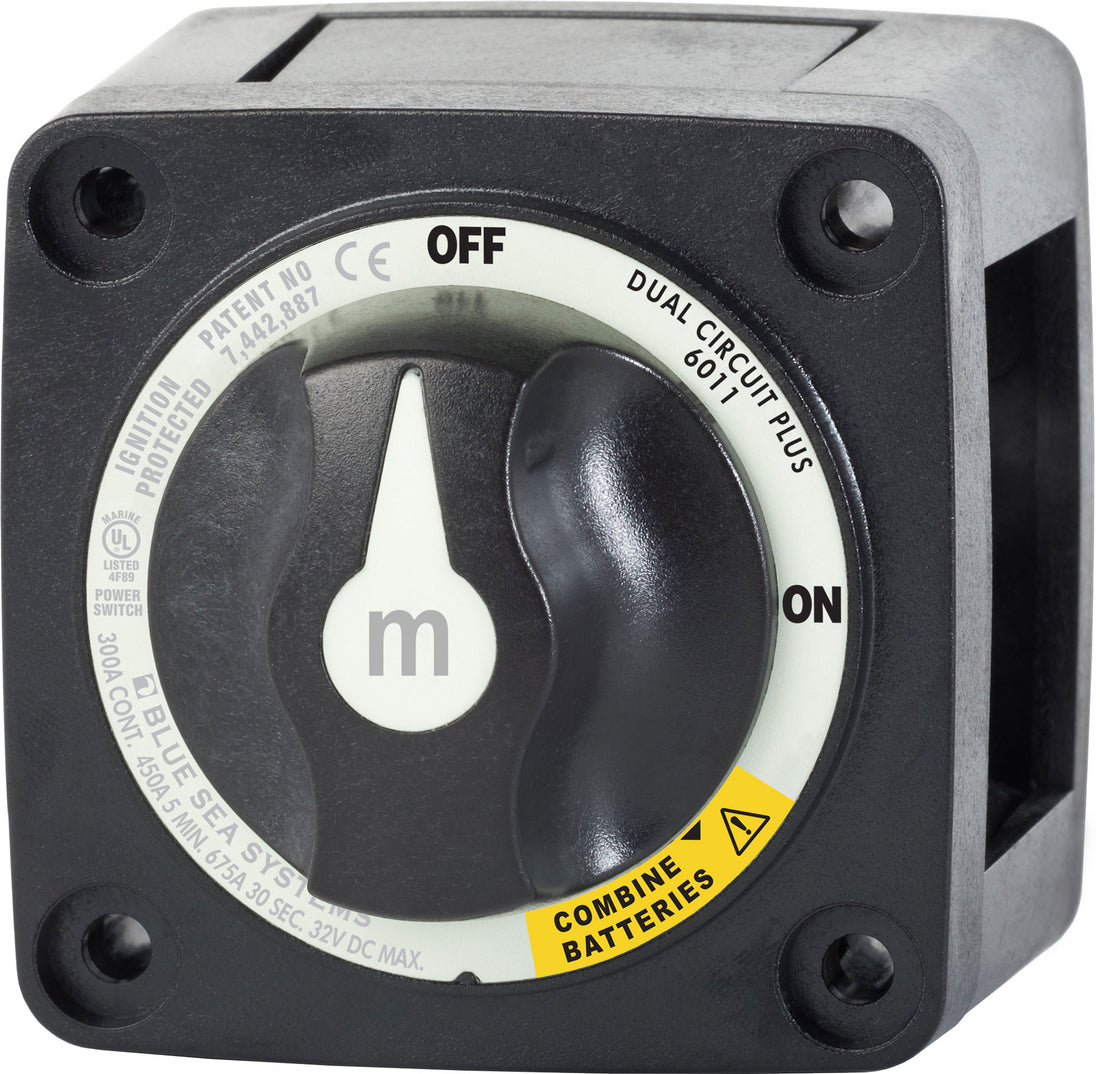

Blue Sea M-Series Battery Switch On/Off Dual Circuit Plus Black - 6011200-BSS
$44.55
$65.99
Part # BSS6011200
UPC: 632085601126
Available for purchase
Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Product details
Blue Sea Systems m-Series Mini Dual Circuit Plus Battery Switch - Black
Model: 6011200-BSS- Tin-plated copper studs for maximum conductivity and corrosion resistance
- Studs accept 3/8 (M10) ring terminals
- 7/8 in (22mm) stud length accepts multiple cable terminals
- Blue Sea Systems one-piece terminal stud design never loosens over time
- Isolating cover with snap-on sections protects rear contacts
- Case design allows surface or rear panel mounting
- Waterproof - rated IP66 from water projected in powerful jets
- One-piece stainless flange nuts ensure safe and secure connections
- Breakout tabs allow wire access in any direction
- Make before break contact design allows switching between battery banks without power interruption
Simultaneously switches two isolated battery banks or combines battery banks to all loads
Specifications| Dual Circuit Plus | |
| Color | Black |
| Switch Positions | 3 |
| Battery Combine | Yes |
| Alternator Field Disconnect | No |
| Maximum Voltage | 32vDC |
| Stud Size | 3/8 in |
| Terminal Stud Torque | 120 in-lb (13.56 Nm) |
| Continuous Rating | 300A |
| Intermittent Rating | 450A (5 min) |
| Cranking Rating 30 sec | 675A |
| Battery Inputs | 2 |
| Cable Clearance For 4/0 AWG Cables | 1.12in (28.45 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm2) |
| Mounting Holes | Accept #10 Screw |
| Stud Material | Tinned Copper |
| Stud Torque | 120 in-lb (13.56 Nm) |
| Terminal Stud Size | 3/8 in - 16 (M10) |
