Blue Sea Systems

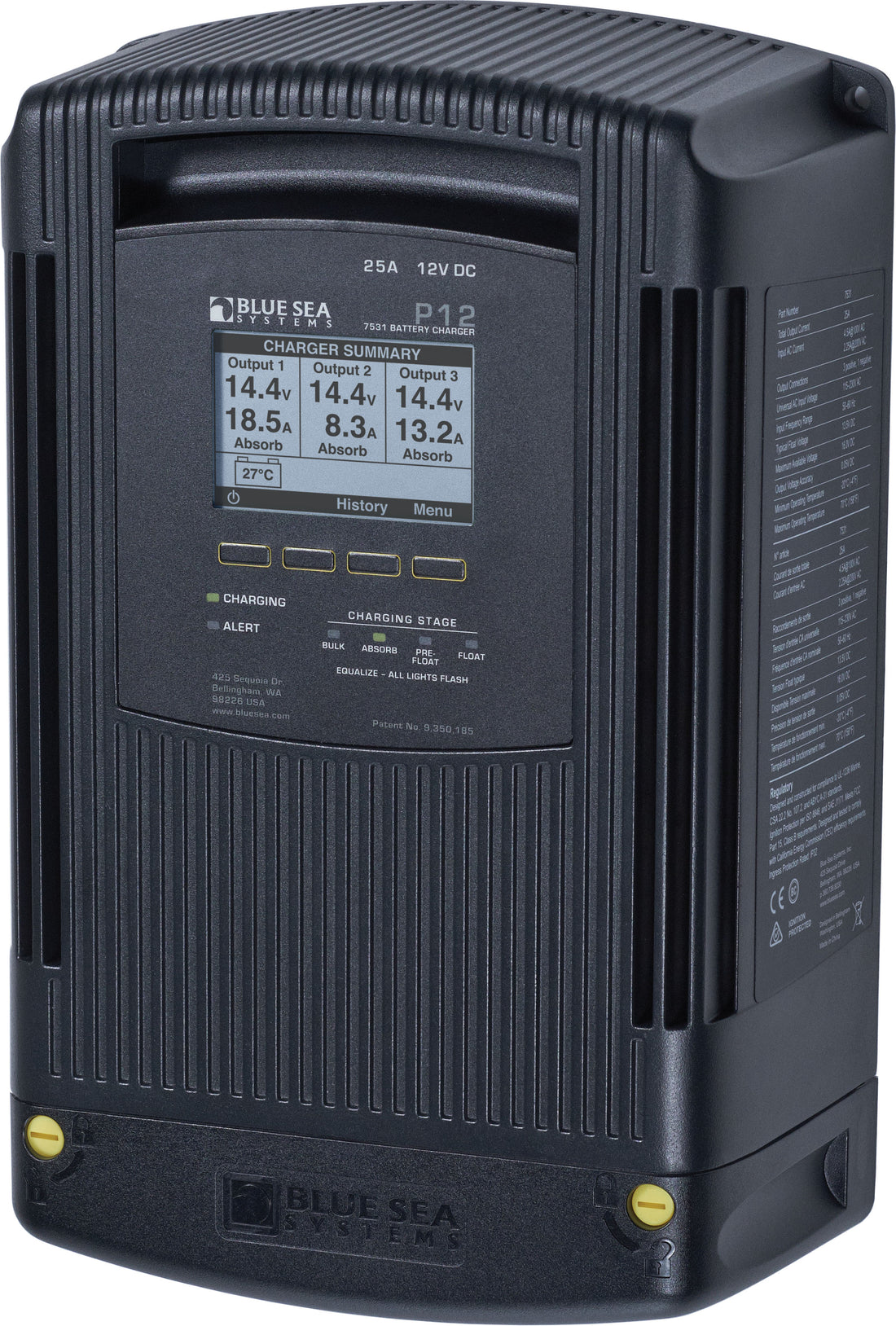

Blue Sea P12 Battery Charger 12v Output 120/230V Input 25Amp 3 Bank - 7531-BSS
$583.25
$812.99
Part # BSS7531
UPC: 632085075316
Available for purchase
Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Product details
Blue Sea Systems P12 25A 12vDC Battery Charger
Model: 7531-BSS- Rugged, finned aluminum case
- Rugged, finned aluminum case
- Power factor corrected for efficient use of AC
- Intuitive diagnostic screens
- User defined charge profiles and customizable settings
- Provides charging for up to three battery banks
- Large, bright display
- Multi-language: English, French, German, Italian, Spanish
- Charge Coordination with Blue Sea Systems Automatic Charging Relays (ACR) controls ACR state ensuring proper float stage for each battery
- Battery Temperature Compensation - adjusts charge voltage based on battery temperature
- AC over and under voltage shut down and automatic restart
- Over and under battery temperature protection - charger will not operate if battery temperature rises above or falls below a set value
- DC over voltage and reverse polarity protection
- Surge and short circuit protection
| 25A | |
| Input AC Current | 4.5A @ 100V A |
| Maximum Output Voltage | 16V DC |
| Nominal Voltage | 12V DC |
| Ignition Protected | Yes |
| Number of Outputs | 1 negative 3 positive |
| Stud Size | M6 |
| Universal AC Input Voltage | 115-230V AC |
| AC Input Frequency | 45-65Hz |
| Output Voltage Accuracy | 0.05V |
| Typical Float Voltage | 13.5V DC |
| Maximum Operating Temperature | 70 deg C |
| Minimum Storage Temperature | -30 deg C |
| Maximum Storage Temperature | 80 deg C |
| Battery Types | AGM Flooded Lead Acid Gel TPPL |
| Recommended for Battery Bank Sizes | 330Ah Maximum 60Ah Minimum |
| Screw Terminal Torque | 10 in-lb (1.13 Nm) M3 15 in-lb (1.69 Nm) M4 |
| Stud Torque | 80 in-lb (9.04 Nm) |
| Dimension H x W x D | 13.03in x 8.46in x 3.66in |
| Warranty | 5 Year |
What's in the Box:
- P12 25A Charger
- Mounting hardware
- Ac Strain Releif
- DC Strain relief
- Temperaur Sensor
- Dielectric Grease
