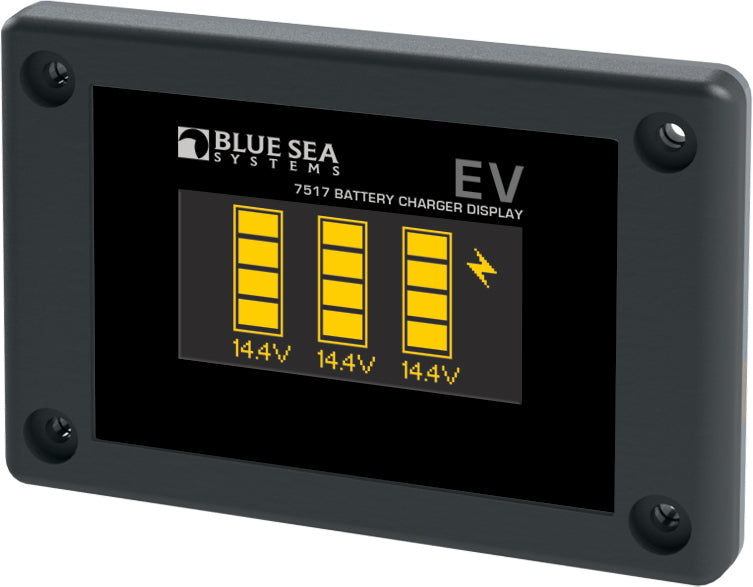

Blue Sea P12 Battery Charger Summery Display - 7517-BSS
$195.44
$269.99
Part # BSS7517
UPC: 632085075170
Currently unavailable
Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Available to order. This item will ship once it is back in stock.
Product details
Blue Sea P12 Battery Charger Summery Display
Model: 7517-BSS- Drop in replacement for traditional rectangular displays
- Automatically detects 1-3 battery banks
- AC charge indication verifies that power is connected and the battery charger is charging
- Plain language fault indication relays if there is a fault with the battery charger
- Dip switch selectable screen configuration allows the display to show voltage bar graphs or the P12 Battery Charger summary screen
- Displays voltage bar graphs even when AC power is not present
- Optional standby mode shuts off screen after 4 hours of inactivity
- Automatic ON based on motion with integrated knock sensor
- Bright, daylight readable, OLED display
The EV Battery Charger Display provides two options to monitor your battery banks. It can display a graphical representation of voltage for 1 to 3 battery banks with or without connection to a P12 Battery Charger. When connected to a P12 Battery Charger it can display the charger’s Summary screen, displaying voltage, current charging stage, and faults from the charger.
Specifications| Accuracy | +/- 1% at 36 Volts DC |
| Battery Inputs | 3 with common reference |
| Display Size | 55mm x 28mm |
| Display Type | Yellow OLED |
| Input Voltage Range | 6-36V DC |
| Maximum Current Draw | 50mA |
| Minimum Current Draw | <1mA in Standby Mode |
What's in the Box:
- EV Battery Charger Display
- Mounting Gasket
- Four Position Connector
- 25ft (7.8m) Cat5e Cable
