Blue Sea Systems
Blue Sea Panel Enclosure 120/240v AC 50A ELCI Main Surface Mount System - 3119-BSS
$717.29
$1,221.99
Part # BSS3119
UPC: 632085031190
Currently unavailable
Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Available to order. This item will ship once it is back in stock.
Product details

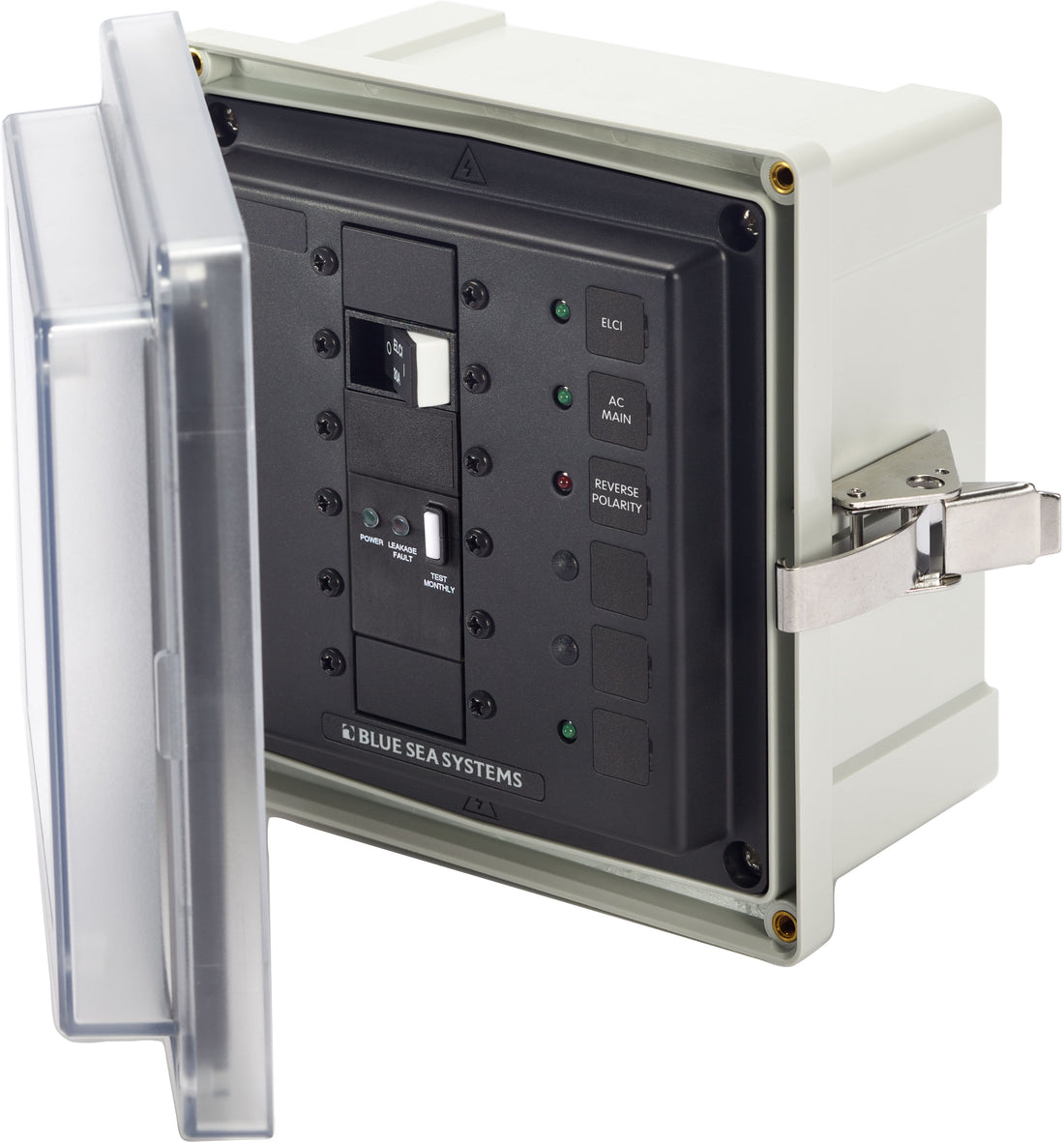

Blue Sea SMS Surface Mount System Panel Enclosure - 120/240V AC / 50A ELCI Main - 1 blank circuit position
Model: 3119-BSS- Includes one 120/240V AC / 50A ELCI Main and one blank position
- Blank apertures for custom breaker loading
- Glass filled polycarbonate mounting box
- Clear cover allows easy view of circuit breaker status
- Overlapping cover for strength and increased gasket protection
- Oversized, formed in place seamless PUR gasket
- Easily removable stainless steel hinge pin for unobstructed installation
- Stainless steel latch secures cover without penetrating the enclosure
- Blank circuit positions accommodate Carling TechnologiesTM A- and C- Series Flat Rocker and ELCI Main circuit breakers
- Stainless steel mounting hardware included
- Includes waterproof glands
- LED lights for back lighting and ON indication
Panel enclosure for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet
Specifications| -40 deg C | |
| Maximum Operating Temperature | 85 deg C |
| Cover Screws and Hardware | 10-32 Stainless Steel |
| Enclosure Size | 6.0 x 6.0 in x 4.0 in |
| Exterior Overall Dimensions | 7.6 in x 7.4 in x 4.7 in |
| Mounting Hardware | Mounting Hardware |
| Weight | 7.00lb (3.18 kg) |
What's in the Box:
- SMS Panel Enclosure
- ELCI Main 120/240V
