Blue Sea ST CLB Circuit Breaker Block - 6 position with Negative Bus - 5052-BSS
$60.02
$94.99
Part # BSS5052
UPC: 632085050528
Available for purchase
Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Product details

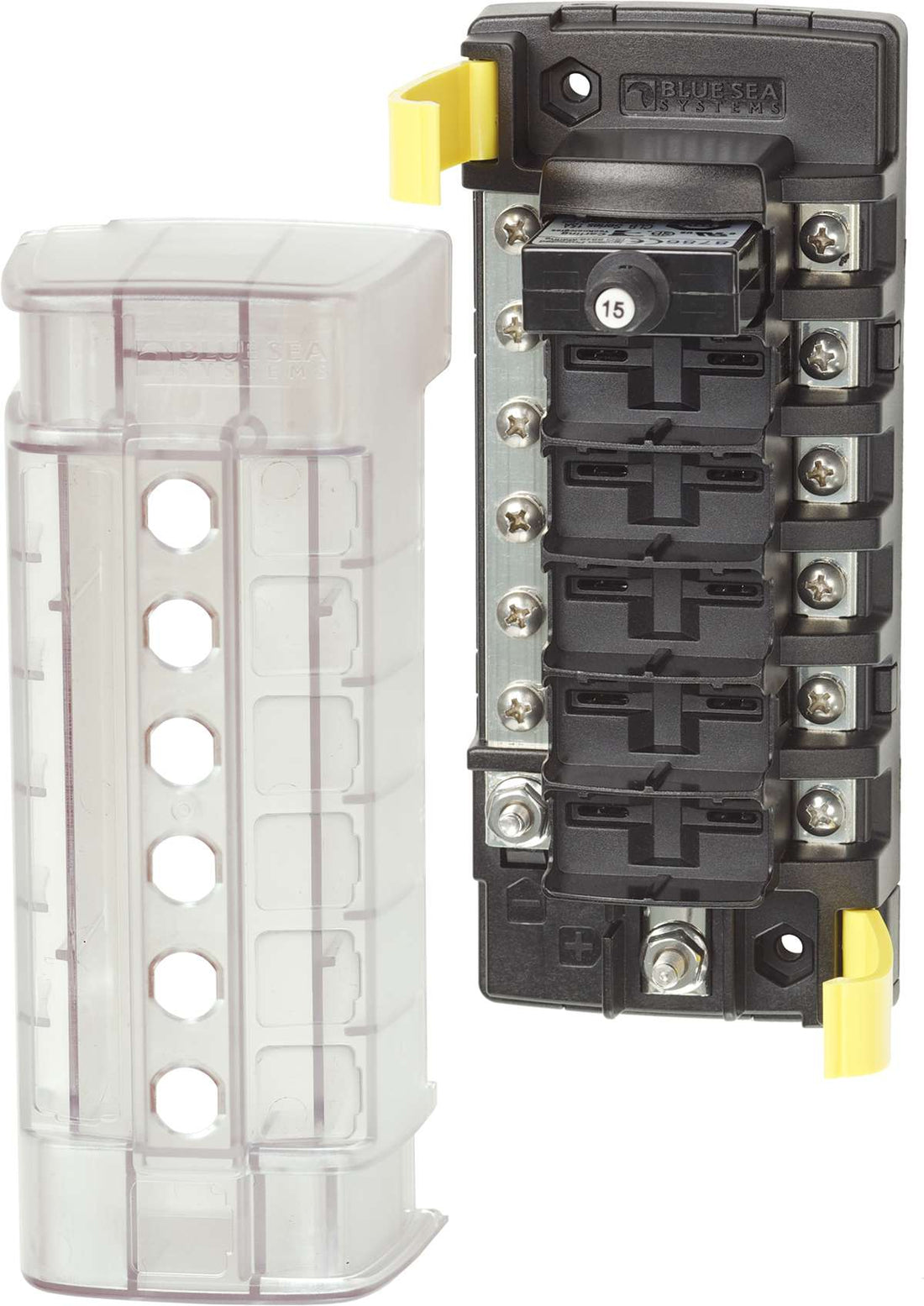

Blue Sea ST CLB Circuit Breaker Block - 6 Position with Negative Bus
Model: 5052-BSS- Quick connect clips allow circuit breakers to snap easily into place
- Tin-plated copper busses and screw terminals
- Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
- Easy to open clip on cover
- Breakouts allow wire access in two directions
- Accepts ring terminals
- Optional push button waterproof boots or dress nuts can be installed over cover
- Accepts square labels
The advantage of a resettable circuit breaker over a fuse is well known however people find circuit breakers more expensive and difficult to install. The ST CLB Circuit Breaker Block solves this issue by using the compact, snap-in-place CLB resettable circuit breaker which makes breakers as easy to install as a fuse.
Specifications| 6 | |
| Maximum Amperage | 100A (per block) 32A (per circuit) |
| Maximum Voltage | 32V DC |
| Negative Bus | #10-32 Stud |
| Positive Bus | #10-32 Stud |
| Source | Common Source |
| Minimum Operating Temperature | -10 deg C |
| Maximum Operating Temperature | 60 deg C |
| Mounting Centers | 5.63in (143 mm) |
