Bluewater Enterprises

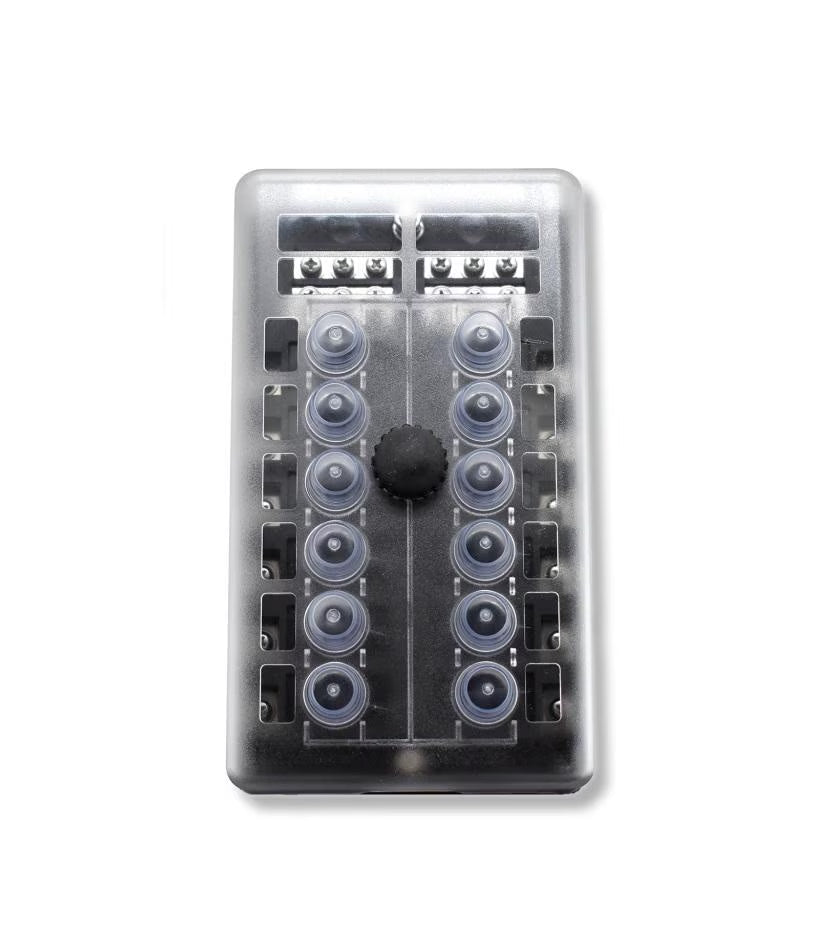

Bluewater 12 Position Circuit Breaker Panel W/Cover - 3200-2001-012
$46.70
Part # BWE32002001012
UPC: 810196332317
Available for purchase
Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Product details
Bluewater 12 Position Circuit Breaker Panel W/Cover
Model: 3200-2001-012- Resettable protection — Uses our 38 Series push-to-reset breakers instead of disposable fuses.
- High capacity — Rated up to 48V DC with a 100A input.
- Reliable design — Nickel-plated copper, stainless steel hardware, and a durable polycarbonate base.
- Easy installation — Mounting holes sized and spaced for straightforward panel placement.
A circuit breaker block is the smarter alternative to a traditional fuse box. Instead of worrying about blown fuses, each circuit is protected by a resettable thermal breaker. If one trips, simply press the breaker and restore power instantly—no spare fuses required.
This circuit breaker block is engineered to handle the harsh realities of marine environments—salt spray, vibration, and constant use. Whether you’re wiring a new build or upgrading a fuse box, it provides a clean, reliable, and resettable power distribution solution.
Specifications| Input terminals | M5 threaded studs |
| Output terminals | M4 studs, rated 25A max per circuit |
| Mounting dimensions | 6.61" x 3.54" |
| Max Voltage | 48V DC |
| Input Current | 100A |
| Breaker Type | 88 Series/BW 38 Series |
| Input Terminal Rating | M5 Threaded Studs (100A max) |
| Output Terminal Rating | M4 Threaded Studs (25A max) |
| Material | Stainless Steel/Nickel-plated Copper/Polycarbonate |
| Installation | |
| Mounting Holes | 0.1695" |
| Distance Between Mounting Holes | 6.61" H / 3.54" W |
