Bluewater Enterprises

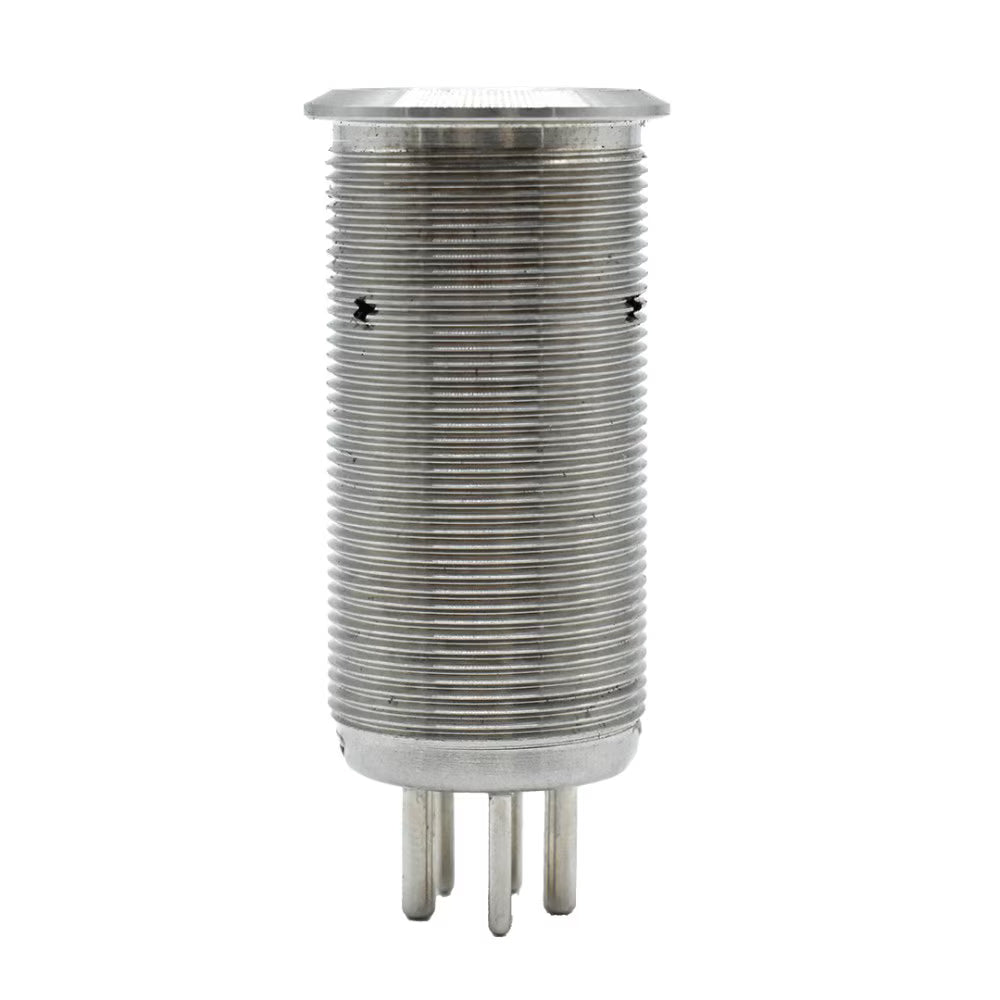

Bluewater 19mm Electronic 80W PWM Dimmer Switch, Blue/Red LED - 9057-3116
$48.10
Part # BWE90573116
UPC: 810196330832
Available for purchase
Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Product details
Bluewater 19mm Electronic 80W PWM Dimmer Switch, Blue/Red LED
Model: 9057-3116- Push-Button Dimming — Press and hold to brighten, press and hold again to dim, and press once to turn lights off.
- Compact 19mm Design — Low-profile switch for tight dashboards and crowded panels.
- IP69K Waterproof — Sealed to withstand salt spray, washdowns and full submersion.
- SS316 Stainless Bezel — Corrosion-resistant construction for harsh marine environments.
- Plug-In Installation — Proprietary Deutsch-style connector for fast, clean wiring and easy switch swaps.
The Bluewater 9057-3116 is a 19mm PWM dimmer switch for cabin, cockpit and accent lighting, with a blue backlight when off and red when the lights are on.
Built for boat builders, marine technicians and anyone upgrading an electrical system where space is limited, the 9057 Series features a fully detachable, customizable actuator.
Installation: Drill a 19mm hole (up to 6mm material thickness) and plug in a Bluewater 19mm Deutsch-style harness.
Specifications| Function | PWM dimmer |
| LED Indicators | Blue off / Red on |
| Max Load | 80W |
| Protection Rating | IP69K |
| Mounting Hole | 19mm, panels up to 6mm thick |
| Material | Nickel-plated brass / SS316 stainless steel |
| Mechanical Life | 50,000 cycles |
| Electrical Life | 10,000 cycles |
| Connector | Deutsch-style (19mm harness 9057-4914 sold separately) |
