Bluewater Enterprises

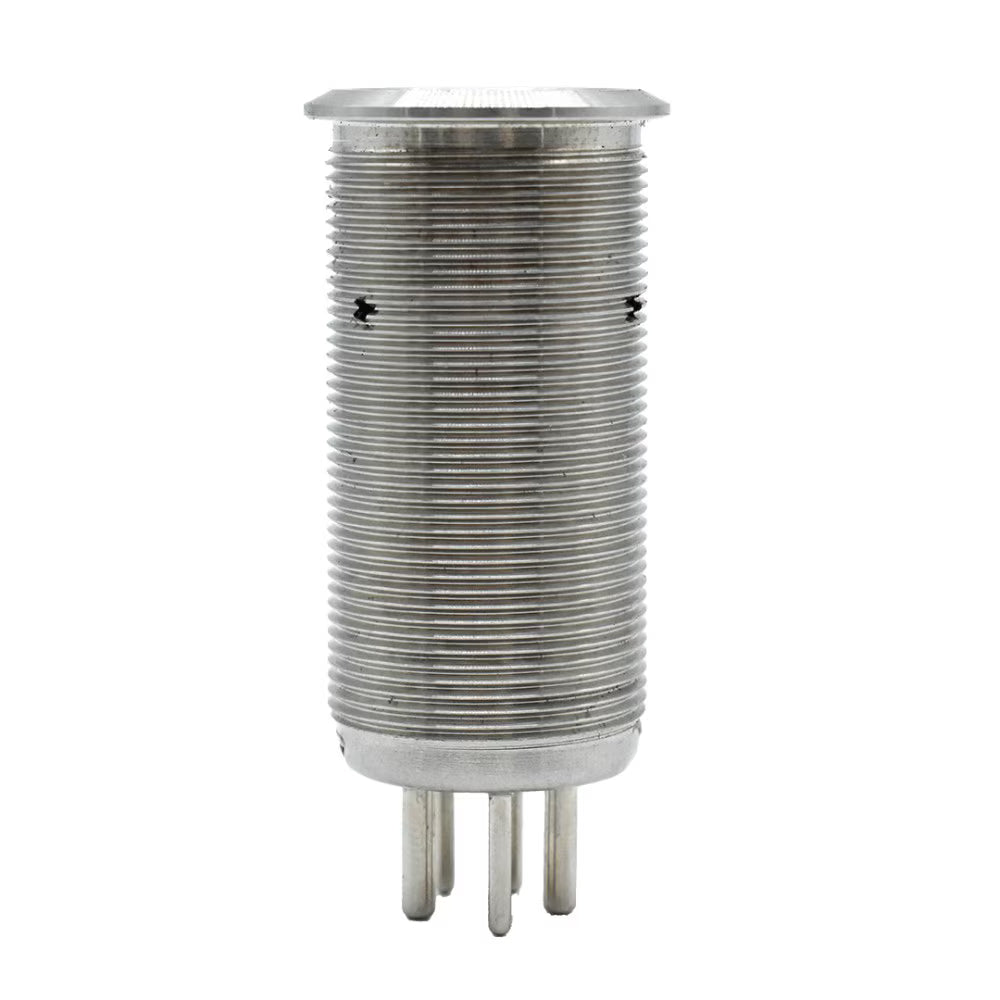

Bluewater 19mm Electronic Nav/Anchor Light Switch, Blue/Green/Red LED - 9057-3114
$48.10
Part # BWE90573114
UPC: 810196330818
Available for purchase
Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Product details
Bluewater 19mm Electronic Nav/Anchor Light Switch, Blue/Green/Red LED
Model: 9057-3114- Nav/Anchor Control — First press turns on nav and anchor lights, second press leaves only the anchor light on, third press turns both off.
- Compact 19mm Design — Low-profile switch for tight dashboards and crowded panels.
- IP69K Waterproof — Sealed to withstand salt spray, washdowns and full submersion.
- SS316 Stainless Bezel — Corrosion-resistant construction for harsh marine environments.
- Plug-In Installation — Proprietary Deutsch-style connector for fast, clean wiring and easy switch swaps.
The Bluewater 9057-3114 handles navigation and anchor lighting from one compact 19mm push button, with green showing nav + anchor, red showing anchor only and a blue backlight when off.
Built for boat builders, marine technicians and anyone upgrading an electrical system where space is limited, the 9057 Series features a fully detachable, customizable actuator.
Installation: Drill a 19mm hole (up to 6mm material thickness) and plug in a Bluewater 19mm Deutsch-style harness.
Specifications| Function | Nav/Anchor: Off - Nav + Anchor - Anchor only |
| LED Indicators | Blue off / Green nav + anchor / Red anchor only |
| Voltage/Current | 7.5A per channel @ 12–24VDC |
| Protection Rating | IP69K |
| Mounting Hole | 19mm, panels up to 6mm thick |
| Material | Nickel-plated brass / SS316 stainless steel |
| Mechanical Life | 50,000 cycles |
| Electrical Life | 10,000 cycles |
| Connector | Deutsch-style (19mm harness 9057-4914 sold separately) |
