Bluewater Enterprises

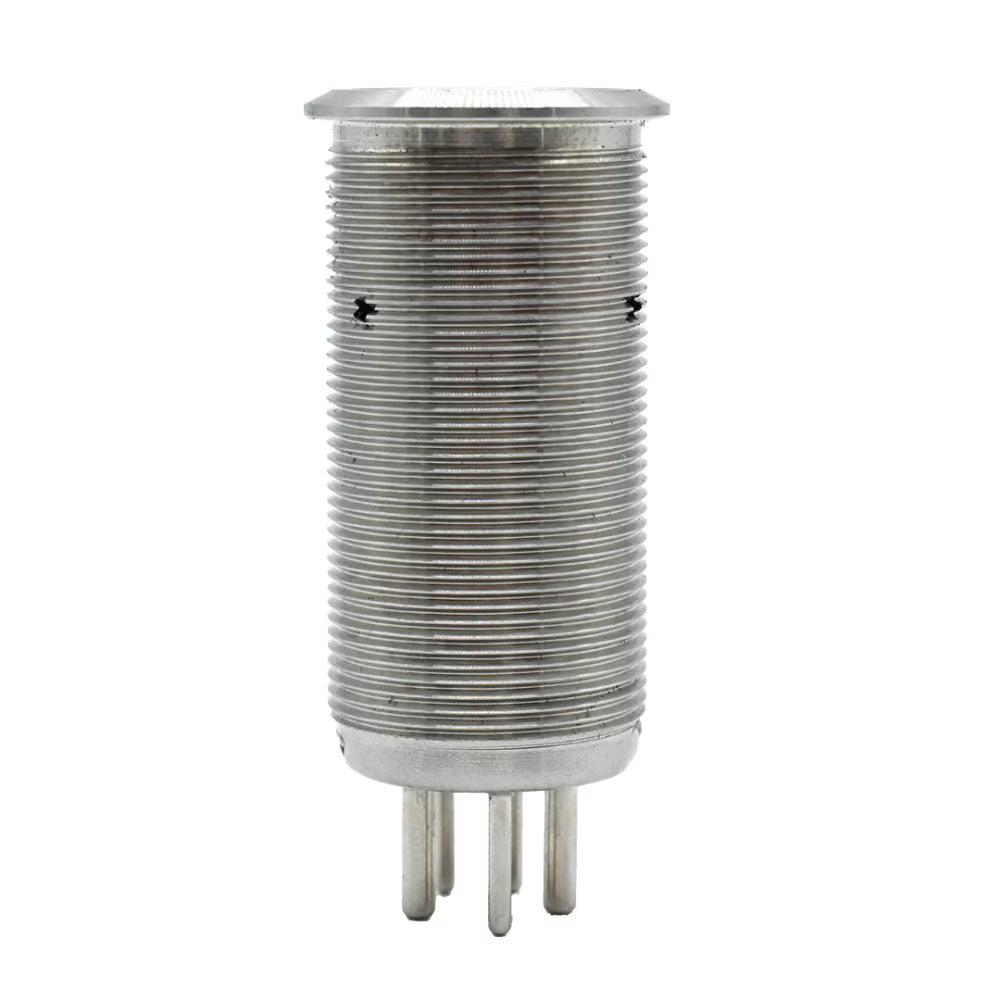

Bluewater 19mm Electronic Off-On-On-Both Switch - 9057-3115
$48.10
Part # BWE90573115
UPC: 810196330825
Currently unavailable
Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Available to order. This item will ship once it is back in stock.
Product details
Bluewater 19mm Electronic Off-On-On-Both Switch
Model: 9057-3115- Four-State Control — Cycle through Load 1, Load 2, both loads and off with a single push button.
- Compact 19mm Design — Low-profile switch for tight dashboards and crowded panels.
- IP69K Waterproof — Sealed to withstand salt spray, washdowns and full submersion.
- SS316 Stainless Bezel — Corrosion-resistant construction for harsh marine environments.
- Plug-In Installation — Proprietary Deutsch-style connector for fast, clean wiring and easy switch swaps.
The Bluewater 9057-3115 controls two loads individually or together from one compact 19mm switch, with LED colors that show which state is active.
Built for boat builders, marine technicians and anyone upgrading an electrical system where space is limited, the 9057 Series features a fully detachable, customizable actuator.
Installation: Drill a 19mm hole (up to 6mm material thickness) and plug in a Bluewater 19mm Deutsch-style harness.
Specifications| Function | Off-On-On-Both (latching, dual channel) |
| LED Indicators | Green Load 1 / Red Load 2 / Yellow both / Blue off |
| Voltage/Current | 7.5A per channel @ 12–24VDC |
| Protection Rating | IP69K |
| Mounting Hole | 19mm, panels up to 6mm thick |
| Material | Nickel-plated brass / SS316 stainless steel |
| Mechanical Life | 50,000 cycles |
| Electrical Life | 10,000 cycles |
| Connector | Deutsch-style (19mm harness 9057-4914 sold separately) |
