Bluewater Enterprises

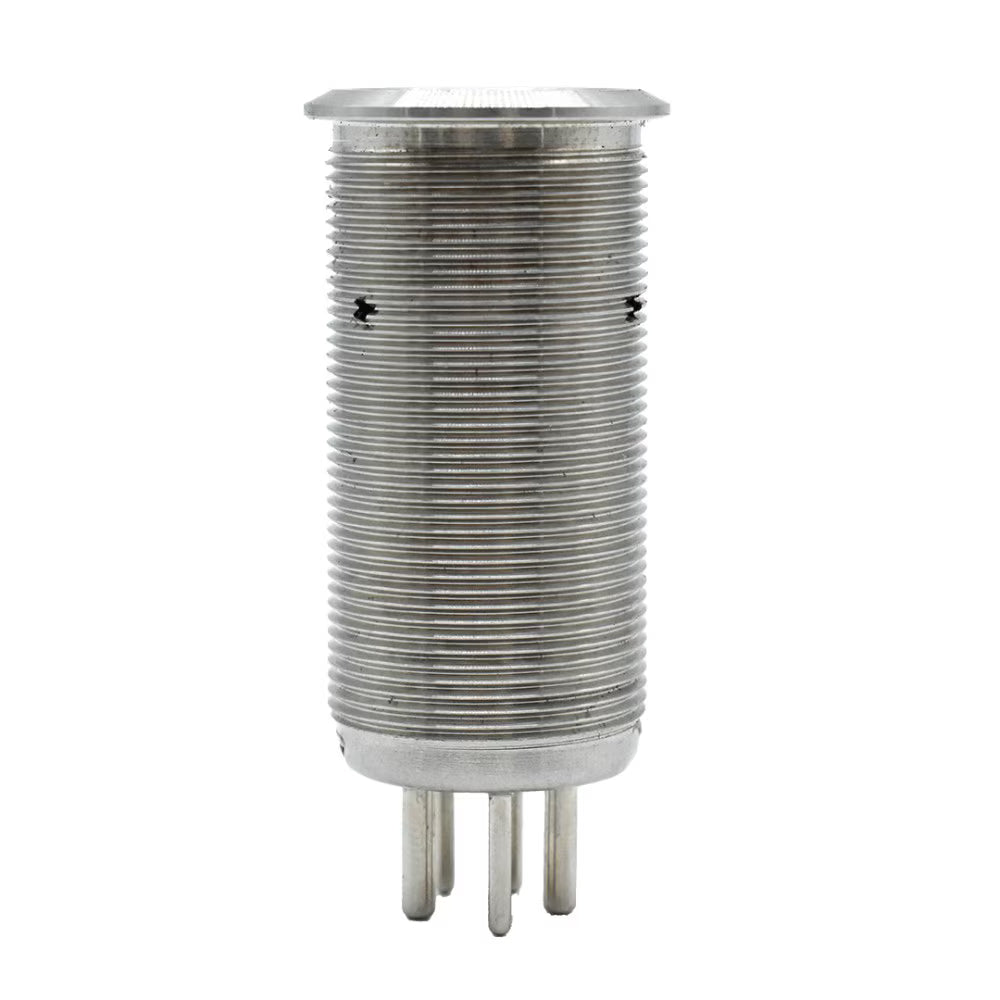

Bluewater 19mm Electronic Off-On-On Switch, Blue/Green/Red LED - 9057-3113
$48.10
Part # BWE90573113
UPC: 810196330801
Currently unavailable
Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Available to order. This item will ship once it is back in stock.
Product details
Bluewater 19mm Electronic Off-On-On Switch, Blue/Green/Red LED
Model: 9057-3113- Two Loads, One Switch — First press turns on Load 1, second press switches to Load 2, third press turns both off.
- Compact 19mm Design — Low-profile switch for tight dashboards and crowded panels.
- IP69K Waterproof — Sealed to withstand salt spray, washdowns and full submersion.
- SS316 Stainless Bezel — Corrosion-resistant construction for harsh marine environments.
- Plug-In Installation — Proprietary Deutsch-style connector for fast, clean wiring and easy switch swaps.
The Bluewater 9057-3113 controls two loads from a single 19mm push button, with a blue backlight when off, green for Load 1 and red for Load 2.
Built for boat builders, marine technicians and anyone upgrading an electrical system where space is limited, the 9057 Series features a fully detachable, customizable actuator.
Installation: Drill a 19mm hole (up to 6mm material thickness) and plug in a Bluewater 19mm Deutsch-style harness.
Specifications| Function | Off-On-On (latching, dual channel) |
| LED Indicators | Blue off / Green Load 1 / Red Load 2 |
| Voltage/Current | 7.5A per channel @ 12–24VDC |
| Protection Rating | IP69K |
| Mounting Hole | 19mm, panels up to 6mm thick |
| Material | Nickel-plated brass / SS316 stainless steel |
| Mechanical Life | 50,000 cycles |
| Electrical Life | 10,000 cycles |
| Connector | Deutsch-style (19mm harness 9057-4914 sold separately) |
