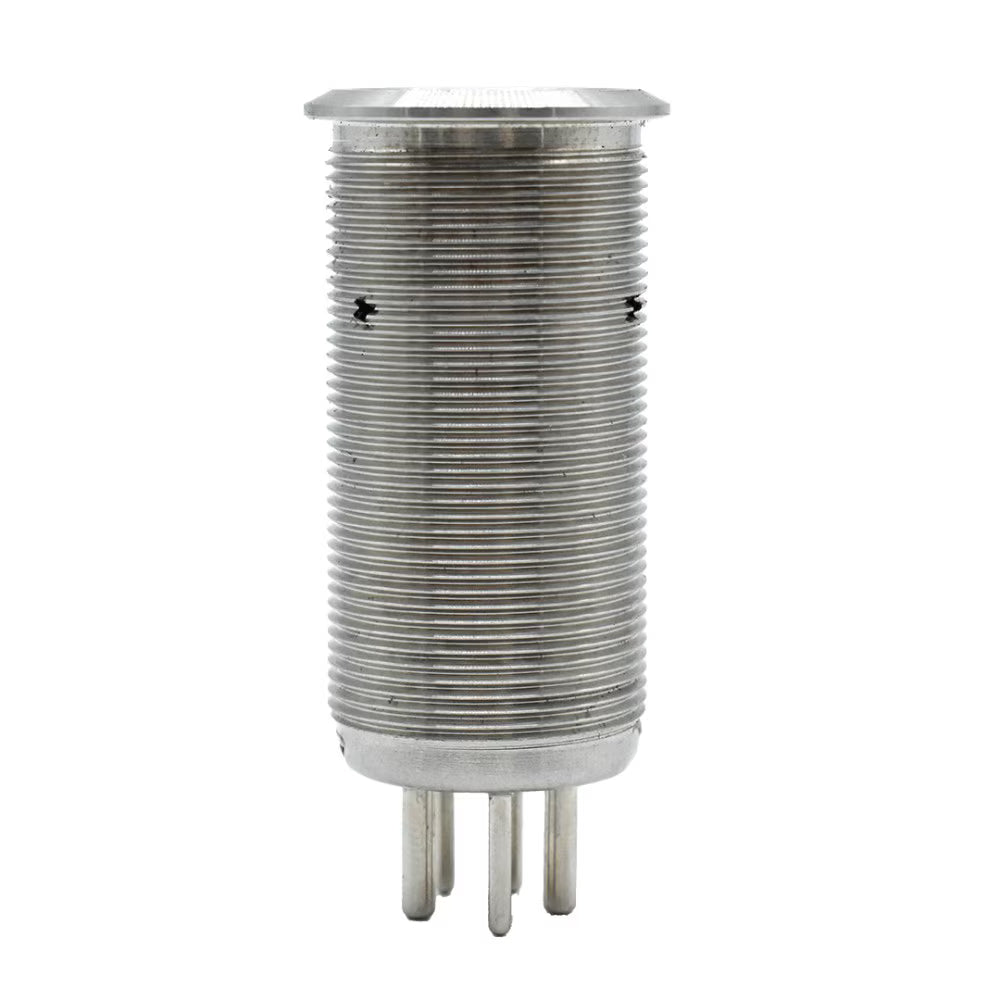

Bluewater 22mm Electronic Timer Switch, 2-Minute Auto-Off - 9059-1555-2F
Bluewater Enterprises

Bluewater 22mm Electronic Timer Switch, 2-Minute Auto-Off - 9059-1555-2F

$55.00
Part # BWE905915552F UPC: 10000520

Available for purchase

Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Product details

Bluewater 22mm Electronic Timer Switch, 2-Minute Auto-Off

Model: 9059-1555-2F
  • Auto-Off Timer — Press to turn on, and the switch shuts the load off automatically after 2 minutes.
  • Early Shut-Off — Press again during the countdown to turn the load off immediately.
  • Inrush Protection — Handles 120A surges for 120µs, so pumps and motors start without nuisance trips.
  • IP69K Waterproof — Sealed SS316 stainless steel body withstands salt spray, washdowns and submersion.
  • Plug-In Installation — Proprietary Deutsch-style connector for fast, clean wiring and easy switch swaps.

The Bluewater 9059-1555-2F is a 22mm electronic switch with a built-in 2-minute on-only timer, so loads such as pumps, blowers or courtesy lights never get left running. The LED shows blue when off and red while the timer is running.

The 9059 Series is built for demanding marine loads such as pumps and motors, with salt-spray testing and 20g shock resistance.

Installation: Drill a 22mm mounting hole and plug in a Bluewater 22mm Deutsch-style harness.

Specifications
Function Timed On, auto-off after 2 minutes
LED Indicators Blue off / Red on
Voltage/Current 20A @ 12–24VDC
Inrush Rating 120A for 120µs
Protection Rating IP69K
Material Nickel-plated brass / SS316 stainless steel
Mechanical Life 50,000 cycles
Electrical Life 10,000 cycles
Mounting Hole 22mm
Connector Deutsch-style (22mm harness 9053-3914 sold separately)
