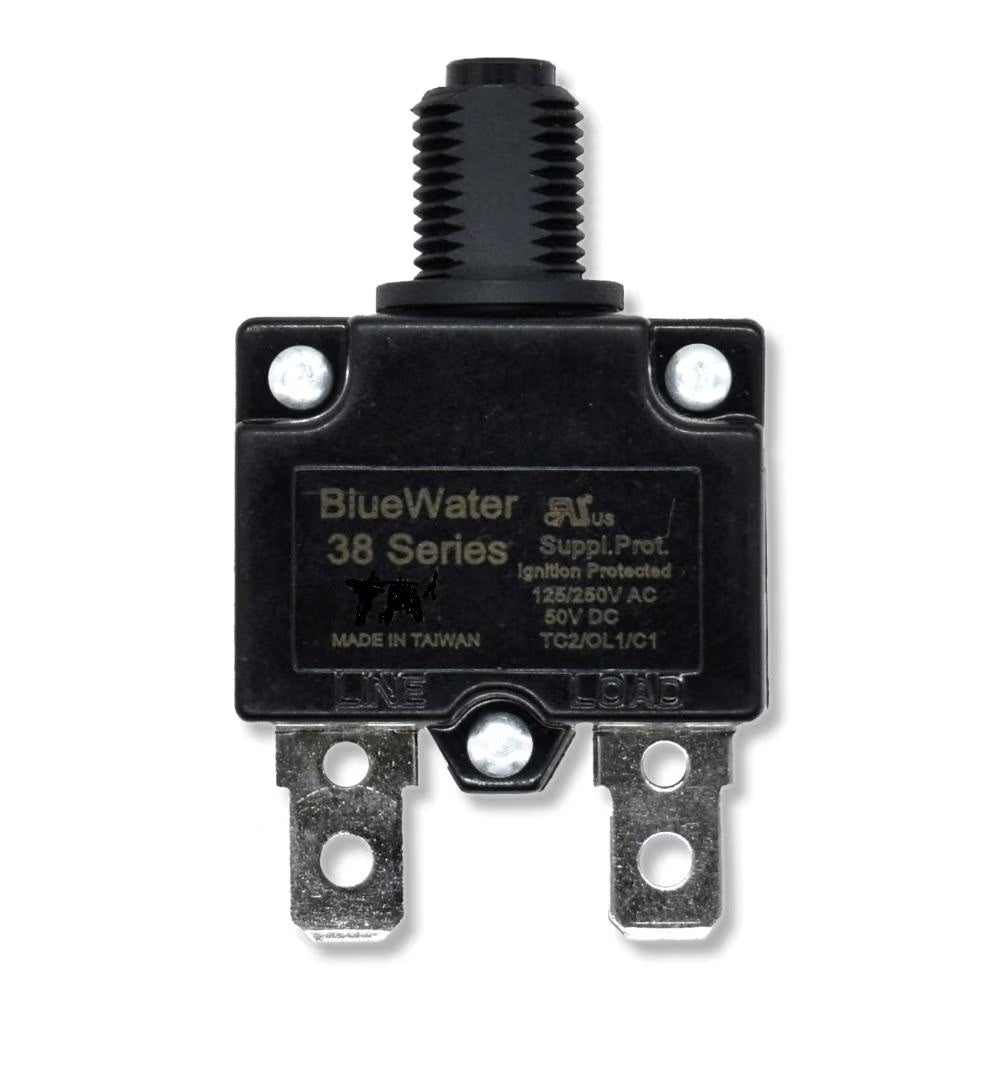

Bluewater 38 Series 8AMP 3/8 Black Marked .250 Thermal Breaker - 38-08-P3X16-P00NB1

Bluewater 38 Series 8AMP 3/8 Black Marked .250 Thermal Breaker

• The 38-Series is a compact push-to-reset thermal circuit breaker designed for low to mid-range current protection, with available ratings from 3A to 30A. Ideal for a variety of AC and DC applications, it supports systems up to 125/250V AC or 32/50V DC and delivers consistent performance across a wide range of overload conditions.
• This breaker features multiple mounting options, including panel or plate mounting, ring nuts, and optional black or clear boots for added environmental protection. It comes with either .250" quick-connect tabs or 90-degree screw terminals, giving you flexibility during installation. Top styles are also customizable, with black, white, and clearly marked cap options to match your panel setup.The 38-Series also fits seamlessly into our 6 or 12 position breaker box, allowing for clean, modular circuit organization.
• With a trip curve designed for safety, the breaker will hold at 100% overload, resist tripping for 60 minutes at 150%, trip within 5 to 30 seconds at 200%, and trip rapidly—within 1.5 to 5 seconds—at 300%.
• Mounting holes measure 0.1″, spaced 0.44″ apart, and the compact design allows for efficient use in tight spaces. When paired with our circuit breaker box, the 38-Series can be integrated into a 6 or 12 position distribution panel for streamlined circuit management.
