Bluewater Mid-Range 20A Panel Mount Circuit Breaker - 78000-9600-20
$15.00
Part # BWE78000960020
UPC: 810196332355
Available for purchase
Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Product details

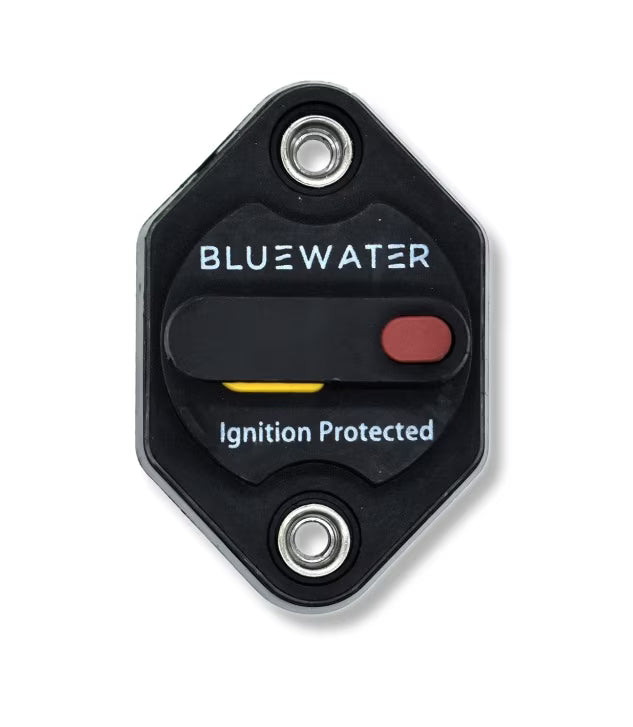

Bluewater Mid-Range 20A Panel Mount Circuit Breaker
Model: 78000-9600-20- 20 Amp Rating — Reliable overload and short-circuit protection for moderate-load DC circuits.
- 12–32V DC Compatible — Suited to marine, RV and mobile electrical systems.
- High Interrupting Capacity — Up to 2500A for dependable short-circuit protection.
- Rugged Build — Thermoplastic housing with nickel-plated copper components.
- Marine Grade — Withstands vibration, moisture and harsh marine environments.
Bluewater Mid-Range circuit breakers protect moderate-load DC systems such as auxiliary and accessory circuits.
This 20A panel mount version installs cleanly in a panel and connects with #10 ring terminals. Surface mount versions are also available.
Installation: Use #10 ring terminals to connect.
Specifications| Current Rating | 20A |
| Max Voltage | 32V DC |
| Voltage Compatibility | 12–32V DC |
| Interrupting Capacity | Up to 2500A |
| Mounting | Panel mount |
| Material | Thermoplastic / Nickel-plated copper |
| Terminals | #10 ring terminal |
