Bluewater Enterprises
Bluewater Off/1/2/Both Battery Selector Switch, 300A, Panel Mount, No Base, Red - 9800-007-10
$40.10
Part # BWE980000710
UPC: 810196331174
Available for purchase
Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Product details

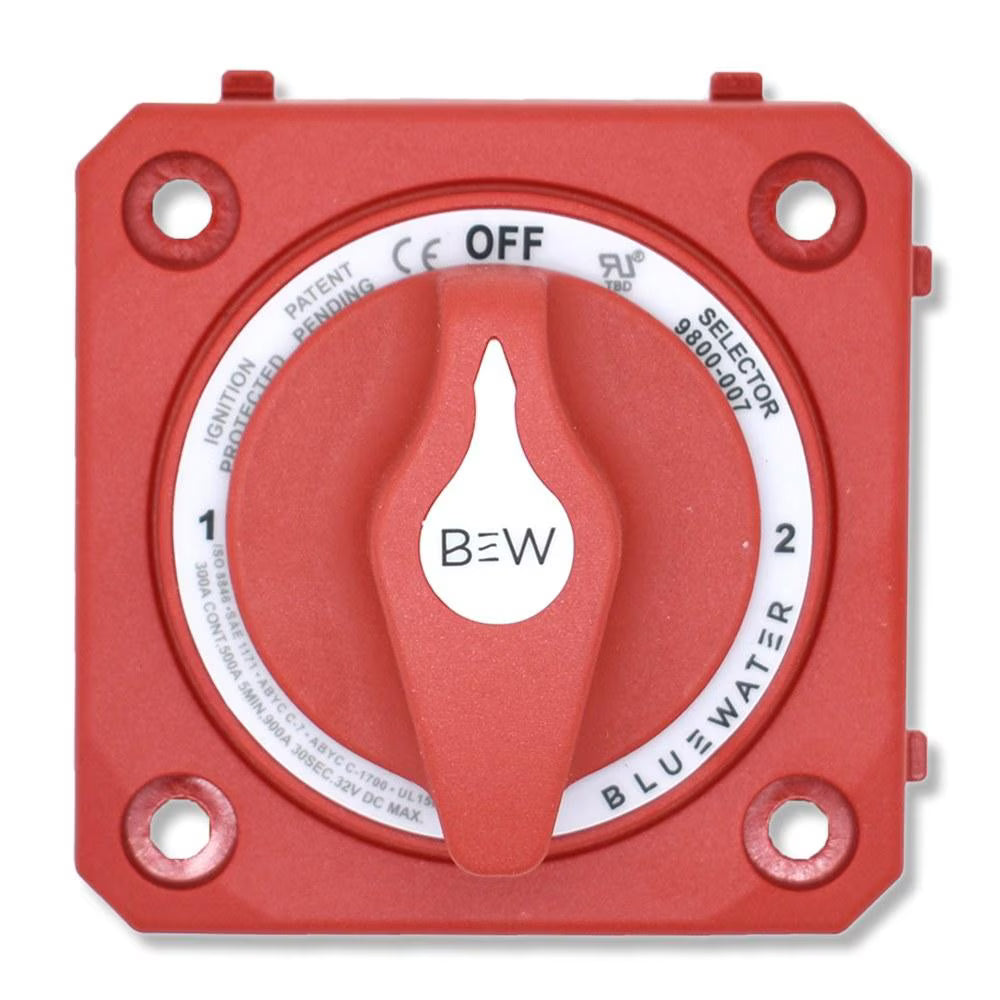

Bluewater Off/1/2/Both Battery Selector Switch, 300A, Panel Mount, No Base, Red
Model: 9800-007-10- Full Battery Control — Route power from Battery 1, Battery 2, both, or neither.
- Heavy-Duty Rating — 300A continuous, 500A intermittent and 900A cranking.
- Heavy-Duty Studs — 3/8"-16 tin-plated copper studs accept 3/8" and M10 ring terminals, with 7/8" stud length for multiple cables.
- Ignition Protected — Safe for gasoline-powered boats; also suited to RV applications.
- Panel Mount — Supplied without a base for front or rear panel mounting.
This Bluewater Off/1/2/Both selector switch is ideal for managing power flow, setting up backup systems and charging multiple battery banks.
It's built from non-corrosive marine-grade metals and reinforced polycarbonate, with tactile knob textures to confirm position by feel. International ON/OFF legends and an icon label set are included.
Specifications| Positions | Off / 1 / 2 / Both |
| Continuous Rating | 300A DC |
| Intermittent Rating | 500A DC (5 min) |
| Cranking Rating | 900A DC (30 sec) |
| Max Voltage | 32VDC |
| Studs | 3/8"-16 tin-plated copper, 7/8" length |
| Cable Size | Up to 4/0 AWG |
| Mounting | Panel mount (no base) |
| Knob Color | Red |
