Seastar
Dometic Seastar JP5100X Hydraulic Jackplate 10in Setback Xtreme - JP5100X
$2,717.84
Part # DOMJP5100X
UPC: 731957929679
Currently unavailable
Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Available to order. This item will ship once it is back in stock.
Product details

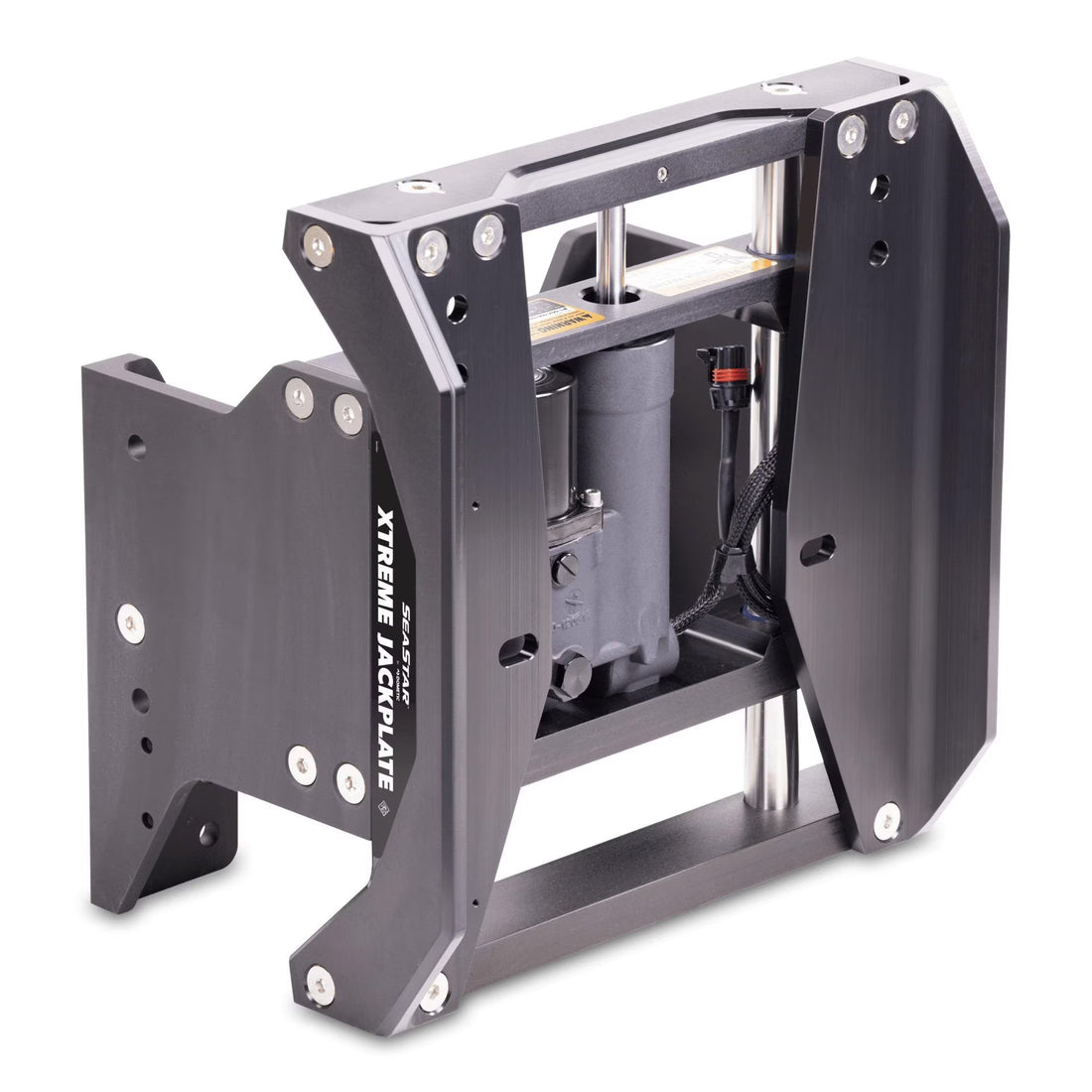

Dometic Seastar JP5100X Hydraulic Jackplate 10in Setback Xtreme
Model: JP5100X
- For engines up to 400 hp
- Made from heavy duty materials for exceptional performance.
- Adjusts engine height seamlessly even at full thrust
- Smooth operation with composite bushings
- Easy wrench access to engine bolts from side
- Compatible with Power Pole and Talon
Dometic Xtreme Jack Plates utilize high strength materials to handle some of the strongest engines on the water. The heavy-duty frames are capable of handling engines up to 400 HP. Designed with speed and durability in mind, the Xtreme Jack Plates can adjust the engine height in just 8.5 seconds, even while the boat is moving at full speed.
Specifications
| Depth | 12 in |
| Height | 17 3/4 in |
| Width | 16 1/8 in |
| Net Weight | 58 lbs |
| Input Voltage (DC) | 12.8 V |
| IP Class | IPX7 |
| Color | Black |
