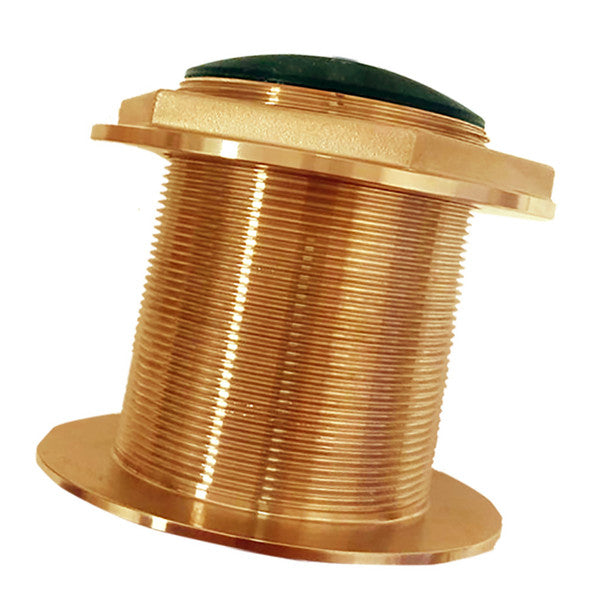

Echonautics BT87H1kW-00 1kW 130-210kHz High CHIRP 0d Tilted Element Bronze TH - BT87H1kW-00
$701.12
$989.00
Part # ECHBT87H1KW00
UPC: 010407340128
Available for purchase
Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Product details
Echonautics BT87H1KW 130-210kHz 1kW High CHIRP 0 deg Tilted Element
Model: BT87H1KW-00- Superior shallow-water performance and bottom detail
The Echonautics BT87H1kW is a low-profile thru hull CHIRP transducer designed to minimize drag and to perform at high speeds.
Thanks to the narrow beamwidth, it is excellent for pinpointing fish holding tight to reefs, wrecks, and other structures.
Specifications| Depth and Temperature | |
| Frequency | CHIRP 130 - 210 kHz |
| Tilt/deadrise | 0 deg tilted version: for 0 deg to 7 deg hull deadrise |
| Material | Bronze |
| RMS Power | 1 kW |
| Beamwidth | 13 deg to 8 deg @-3db |
| Depth | Max 304 m (1,000 ft) |
| Temp. sensor | NTC |
| Acoustic window | Urethane |
| Cable length | 9 m (30 ft) |
| Hole diameter | 87.6 mm (3.45 in) |
