Echonautics CB101D600CW 600w 50/200kHz Bronze Thru-Hull - CB101D600CW
$196.71
$275.00
Part # ECHCB101D600CW
UPC: 010407340050
Available for purchase
Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Product details

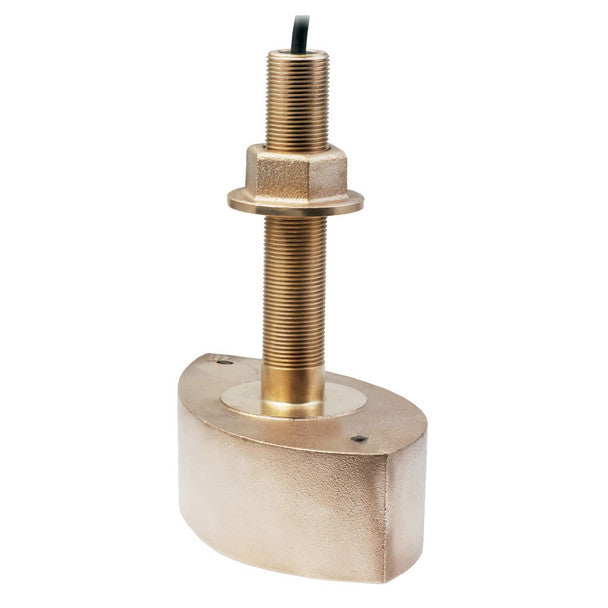

Echonautics CB101D600CW 50/200kHz 600 Watt Bronze Thru-hull
Model: CB101D600CWThe cost-effective choice to get target detail in shallow water as well as good deep-water bottom tracking.
The CB101D600 is a stem thru-hull dual frequency transducer with 600 watts of power, in a bronze housing.
Specifications| Depth and Temperature | |
| Frequency | 50/200 kHz |
| Mount type | Thru-hull fairing block is optional |
| Deadrise | Max deadrise of 20 deg with fairing block. |
| Material | Bronze |
| RMS power | 600 watts |
| Beamwidth | 50kHz 42 deg -3db 200kHz 11 deg -3db |
| Depth | Max @ 50kHz = 1200 ft Max @ 200kHz = 700 ft |
| Temp sensor | NTC |
What's in the Box:
- CB101D600CW transducer
