Egis Mobile Electronics
EGIS 100A 12 Contactor with Auxiliary Contacts Side Mount - 7024
$59.85
$85.00
Part # EME7024
UPC: 850035199787
Available for purchase
Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Product details

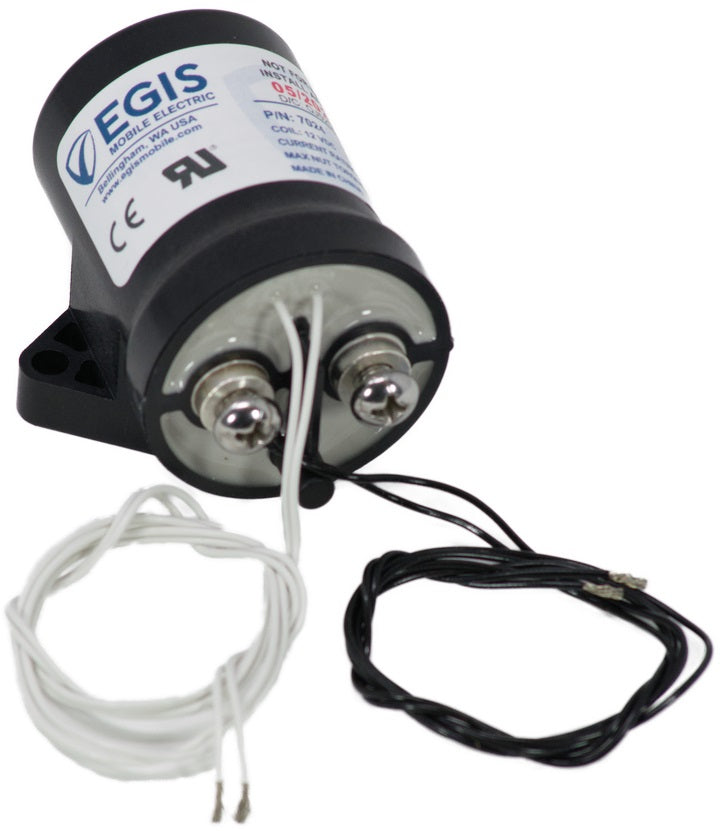

EGIS 100A 12 Contactor with Auxiliary Contacts Side Mount
Model: 7024- SEALED ENCLOSURE:
Sealed against dust and moisture penetration. High temp rated for all installation locations. - 18-8 STAINLESS STEEL SELF LOCKING HARDWARE:
Resists corrosion and ensure long term connection reliability with premium hardware. - EASY MOUNTING:
Reinforced mounting holes provide secure installation and easy attachment for the installer. - REMOTE STATUS SUPPORT:
Optional auxiliary contacts that support remote status indication.
Ignition Protected safe for installation in closed compartments with potential explosive gases
High Electrical Switching Endurance delivers 6,000 cycles at 100A / 350V, 100,000 cycles at 100A / 14V
High Interrupt Current Capability safely able to open in a locked starter situation (up to 1,250 A @ 14 Vdc)
Bullet-proof Construction: Sealed device, high temp materials for engine compartment applications, and stainless self-locking hardware.
4 Year Industry Leading Warranty
Specifications| 100 | |
| OPERATION CONTROL VOLTAGE | 8-16 Vdc |
| INGRESS PROTECTION | IP67 / IP69K |
| IGNITION PROTECTION | ISO-8846 / UL 1500 |
| MIN OPERATE TEMP (DEG C) | -40 |
| MAX OPERATE TEMP (DEG C) | 85 |
