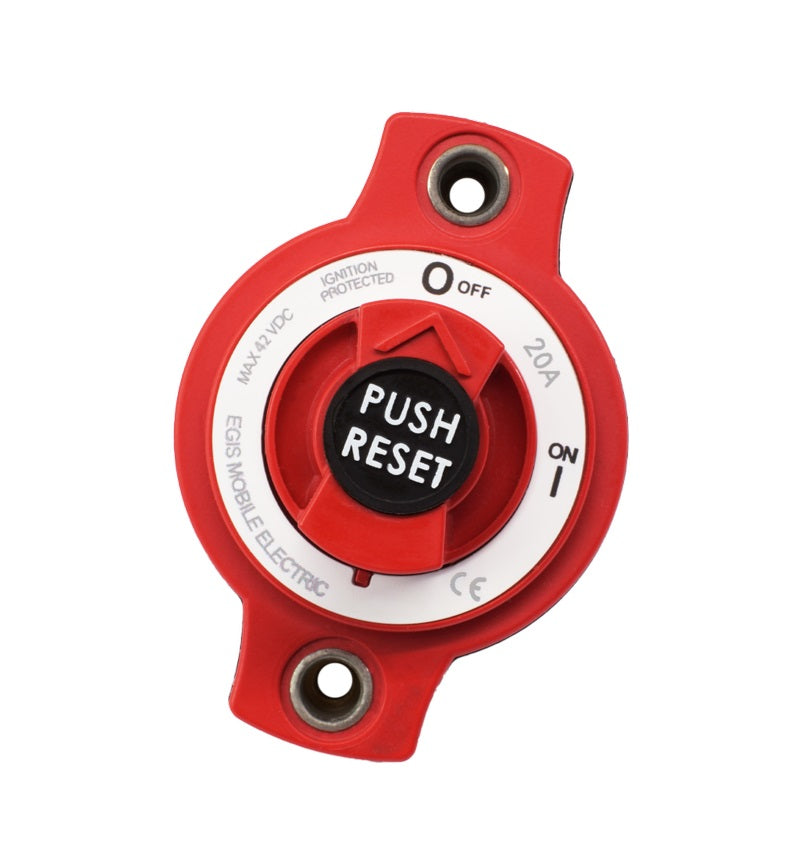

EGIS 20A Mini Breaker Disconnect Switch Panel Mount - 4701-20
$31.25
$44.40
Part # EME470120
UPC: 850053879340
Available for purchase
Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Product details
EGIS 20A Mini Breaker Disconnect Switch Panel Mount
Model: 4701-20- Easy ON/OFF Rotary Switch
Easy to operate and visually recognize switch position. - Stainless Steel Self- Locking Hardware
Corrosion and vibration resistant for harsh environment applications - Weatherproof Construction
Sealed against dust and moisture penetration. High temp rated for all installation locations. ? - Compact Size
Fit more circuit switching / protection on a smaller panel! - Made in the USA of high quality components.
- Ignition Protected
Protects against inadvertent shorts from positive terminals to adjacent grounded surfaces.
Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
42 Vdc Rating: easily supports 12, 24 and 36Vdc applications. Ideal for trolling motor switching applications.
High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current
High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power
4 Year Warranty: We stand behind our product's ability to meet your needs.
Specifications| 20 | |
| MAX VOLTAGE (VDC) |
42 |
| INTERRUPT CURRENT @ 14 VDC (AMPS) | 3,000? |
| Cycle Switching Endurance | 5,000 |
| INGRESS PROTECTION RATING | IP66 |
