Egis Mobile Electronics
EGIS 285-Series 150 Amp Circuit Breaker Surface Mount - 4703-150
$28.29
$40.20
Part # EME4703150
UPC: 850035199190
Available for purchase
Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Product details

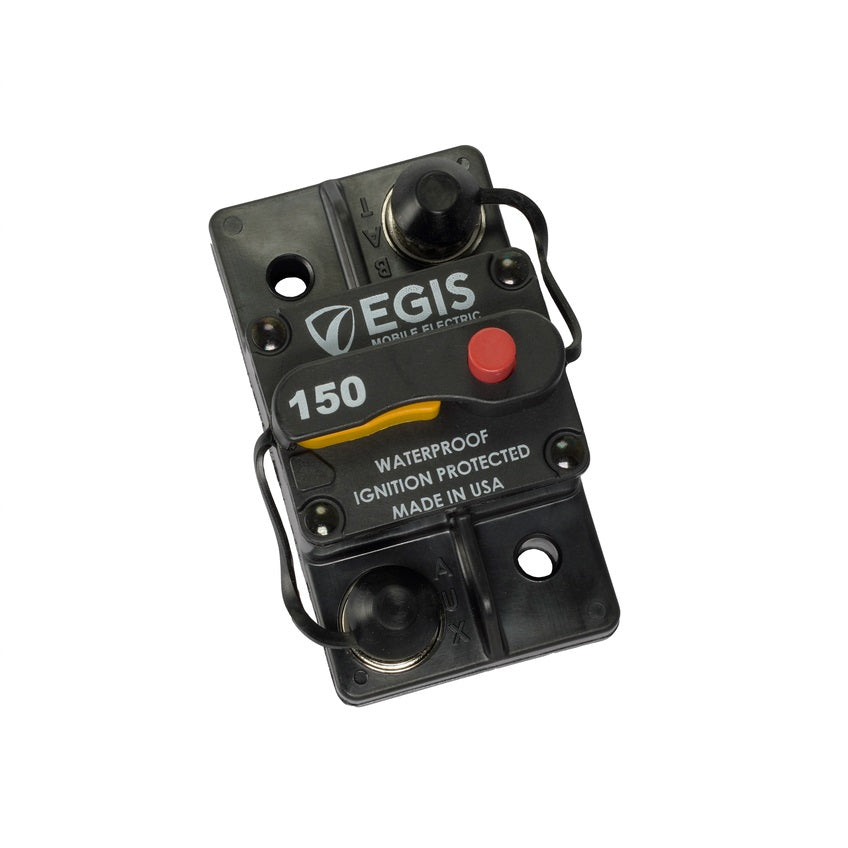

EGIS 285-Series 150 Amp Circuit Breaker Surface Mount
Model: 4703-150- ON/OFF High Visibility Controls
Sealed against dust and moisture penetration. High temp rated for all installation locations. - Integrated Terminal Insulators
Protects against inadvertent shorts from positive terminals to adjacent grounded surfaces. - Stainless Steel Hardware / Serrated Flange Nuts
Corrosion and vibration resistant for harsh environment applications. - Made in the USA of high quality components.
Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
High Voltage (48 Vdc) Rating: easily supports 12 and 24 Vdc applications while offering improved protection for 36 and 48 Vdc systems rather than using fuses.
High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current
High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power
4 Year Warranty: We stand behind our product's ability to meet your needs.
Specifications| 150 | |
| MAX VOLTAGE (VDC) |
48 |
| CYCLING ENDURANCE |
6,000 |
| INTERRUPT CURRENT @ 16 VDC (AMPS) | 5,000 |
| INTERRUPT CURRENT @ 28 VDC (AMPS) | 3,000 |
| INGRESS PROTECTION RATING | IP67 |
