EGIS 87-Series 80 Amp Circuit Breaker Surface Mount - 4704-080
$52.50
Available to order. This item will ship once it is back in stock.

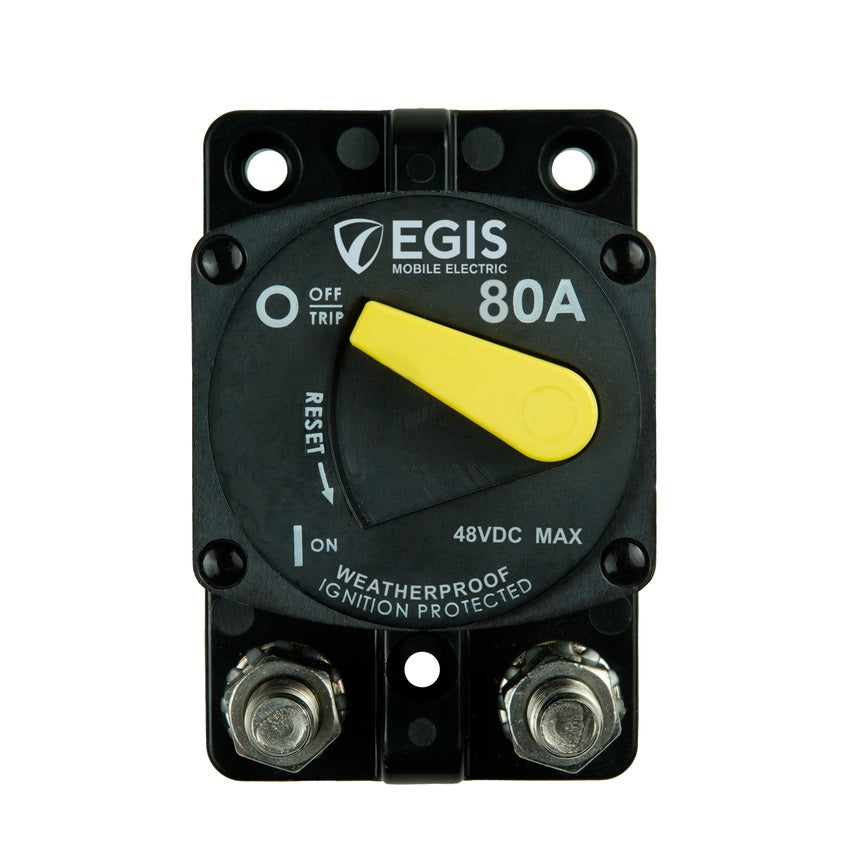

EGIS 87-Series 80 Amp Circuit Breaker Surface Mount
Model: 4704-080- ON/OFF High Visibility Controls
Sealed against dust and moisture penetration. High temp rated for all installation locations. - Reinforced Mounting
Ensures long term structural reliability with reinforced mounting tabs built to withstand the stress of vibration. - Stainless Steel Hardware / Serrated Flange Nuts
Corrosion and vibration resistant for harsh environment applications. - Made in the USA of high quality component
IP 66 Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
High Voltage (48 Vdc) Rating: easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc
High Electrical / Manual Switching Endurance delivers 2,000 cycles at full current
High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power
4 Year Warranty: We stand behind our product's ability to meet your needs.
Specifications| 80 | |
| MAX VOLTAGE (VDC) |
48 |
| CYCLING ENDURANCE |
2,000 |
| INTERRUPT CURRENT @ 14 VDC (AMPS) | 5,000 |
| INTERRUPT CURRENT @ 28 VDC (AMPS) | 3,000 |
| INGRESS PROTECTION RATING | IP66 |
