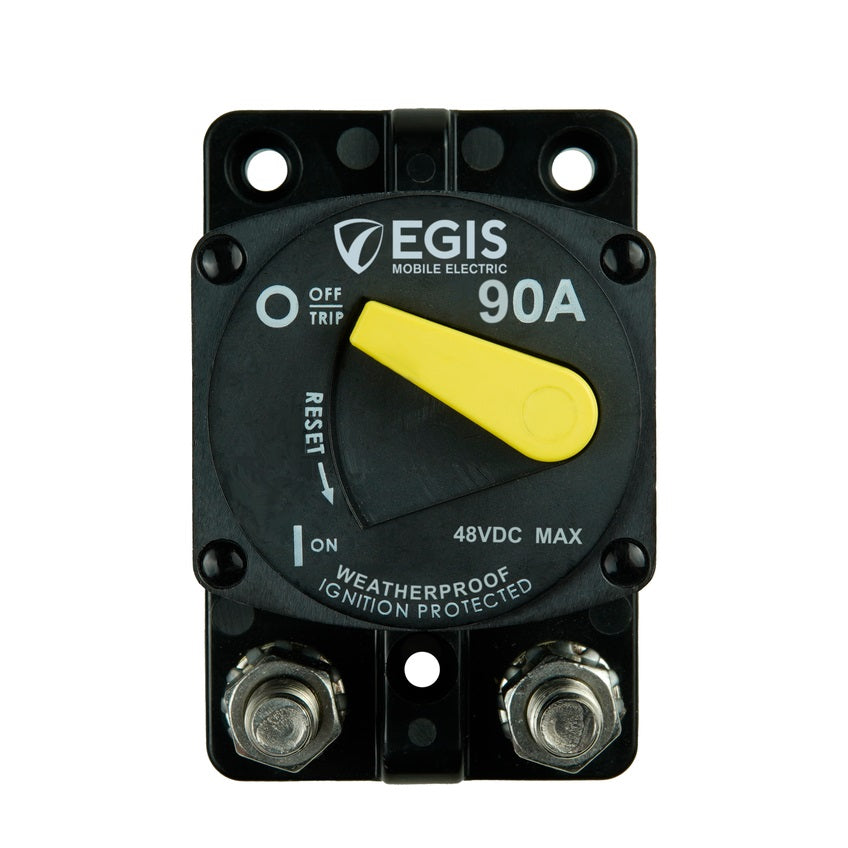

EGIS 87-Series 90 Amp Circuit Breaker Surface Mount - 4704-090
$57.19
$91.40
Part # EME4704090
UPC: 850035199398
Available for purchase
Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Product details
EGIS 87-Series 90 Amp Circuit Breaker Surface Mount
Model: 4704-090- ON/OFF High Visibility Controls
Sealed against dust and moisture penetration. High temp rated for all installation locations. - Reinforced Mounting
Ensures long term structural reliability with reinforced mounting tabs built to withstand the stress of vibration. - Stainless Steel Hardware / Serrated Flange Nuts
Corrosion and vibration resistant for harsh environment applications. - Made in the USA of high quality components.
IP 66 Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
High Voltage (48 Vdc) Rating: easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc
High Electrical / Manual Switching Endurance delivers 2,000 cycles at full current
High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power
4 Year Warranty: We stand behind our product's ability to meet your needs.
Specifications| 90 | |
| MAX VOLTAGE (VDC) |
48 |
| CYCLING ENDURANCE |
2,000 |
| INTERRUPT CURRENT @ 14 VDC (AMPS) | 5,000 |
| INTERRUPT CURRENT @ 28 VDC (AMPS) | 3,000 |
| INGRESS PROTECTION RATING | INGRESS PROTECTION RATING |
