Egis Mobile Electronics
EGIS RT Battery Terminal Mount Fuse Block 4 Circuit - 8023
$30.48
$39.00
Part # EME8023
Available for purchase
Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Product details

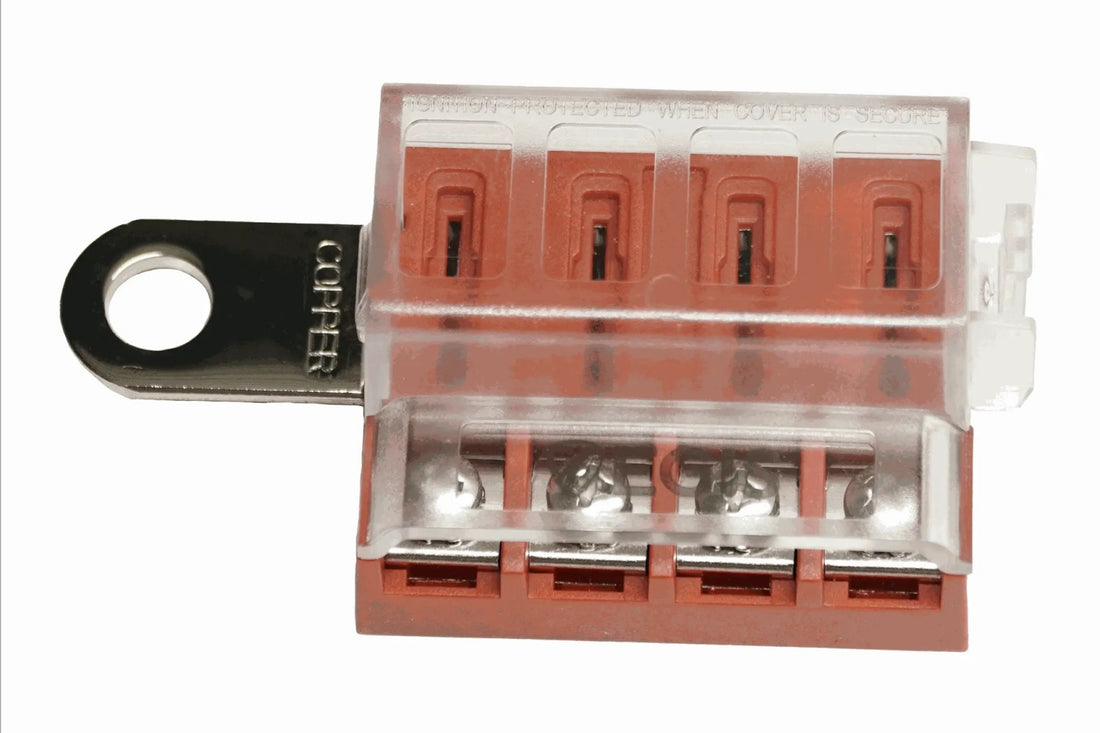

EGIS Marine RT battery Terminal Mount Fuse Block - 4 Circuit
Model: 8023- Compact battery terminal mount inline 4 position fuse block has single side wire entry for tight installations spaces.
- Harsh Environment design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options
- Protects Branch Circuits by accepting ATO style fuses ranging from 1 through 40 Amps.
- Bullet-proof Construction: Designed with high temperature materials and stainless steel self-locking hardware allow mounting anywhere on vehicle.
- Supports SAE Circuit Protection Standards for thermal/short circuit events.
- Includes Latching Protective Cover with integrated label recesses for easy circuit/fuse identification
- Circuit identification labels included for easy circuit/fuse diagnosis.
| 30 | |
| Maximum Current (Entire Block) Amps | 100 |
| Nominal Voltage | 12/24Vdc |
| MAX VOLTAGE (VDC) | 60 |
| Hardware Material | Stainless Steel |
| Input Terminal Size | M5-0.8 |
What's in the Box:
- 8023 4-Circuit Fuse Block
- Circuit identification labels c
