Egis Mobile Electronics
EGIS RT Fuse Block 6 Circuit with LED Indication - 8028
$21.39
$26.30
Part # EME8028
UPC: 850035199732
Available for purchase
Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Product details

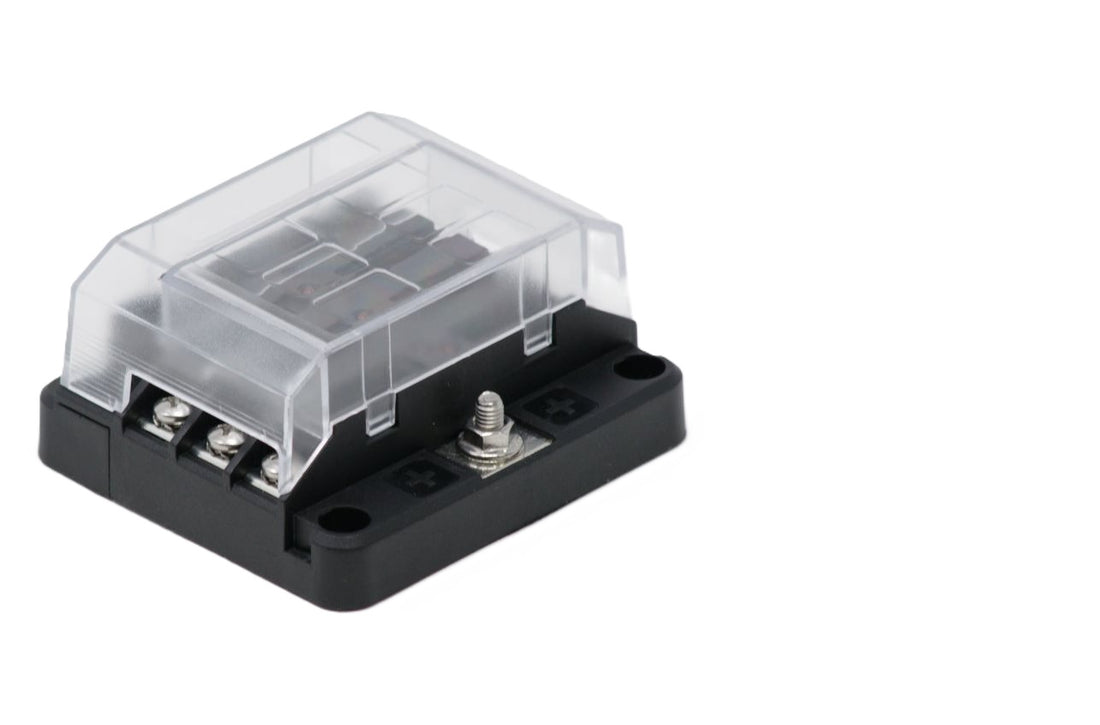

EGIS RT Fuse Block 6 Circuit with LED Indication
Model: 8028- Spare Fuse Locations
Two locations per 6 circuits for spare or test resistors for reducing siren volumes during evaluation. - Stainless Steel Self-Locking Hardware
100 % Non Ferrous corrosion resistant materials. All attachment screws and nuts are self locking. - LED Fuse Diagnostics
Blown fuse LED indication for each output circuit provides clear indication of faulty circuits and eases trouble-shooting issues remotely. - Cover/ Label Recesses
Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.
Bullet-proof Construction: Designed with high temperature materials and stainless steel self-locking hardware allow mounting anywhere on vehicle.
Protects Branch Circuits by accepting ATO style fuses ranging from 1 through 40 Amps.
Supports SAE Circuit Protection Standards for thermal/short circuit events.
Specifications| 100 | |
| MAX CURRENT - Per Circuit (AMPS) | 30 |
| MAX Output Wire Size | #10 AWG |
| VOLTAGE RANGE (V DC) |
0-36 |
| Number of Fuse Positions | 6 |
| Compatible Fuse Types | ATO / ATC / ATF |
