Furuno

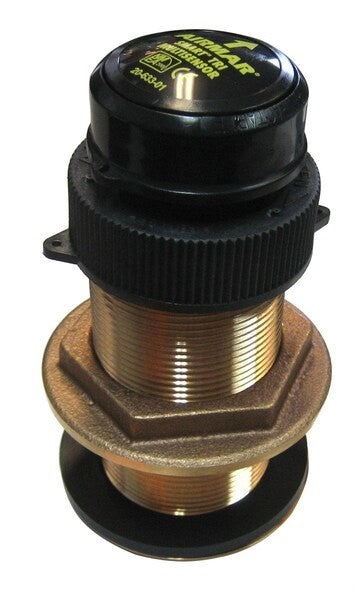

Furuno DT-800MSF Bronze TH NMEA2000 Depth And Temp - DT-800MSF
$386.43
$395.00
Part # FURDT800MSF
UPC: 611679330543
Available for purchase
Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Product details
Furuno DT-800MSF Depth and temperature in one compact bronze housing
Model: DT-800MSF- Depth and temperature in one compact bronze housing
- Fast-response temperature sensor provides ±0.2 degC (±0.1 degF) accuracy
- Acoustic Window: Urethane
Designed with Airmar's exclusive Broadband Ceramic Technology, the DT-800MSF's 235 kHz element improves resolution without sacrificing sensitivity. The higher power rating 100 W RMS provides spot-on depth readings in as little as 0.45 m (1.4 feet) of water and can reach depths up to 180 m (600 feet).
Specifications| 1.5 kg (3.4 lb) | |
| Data Update Rate | 1 per second |
| Minimum Sounding Depth | 0.5 m (1.6 feet) |
| Maximum Sounding Depth | 180 m (590 feet) |
| Pressure Rating | 3 m (10 feet) |
| Pulse Rate | 20,000 p/nm* (5.6 Hz per knot)-*p/nm = pulses per nautical mile |
| Smart Sensor Supply Voltage at 100% Sound Power Output | 10 VDC to 25 VDC |
| Supply Current | 40 mA S |
| tandard Cable Length | 6m |
| NMEA 2000(R) Load Equivalency Number (LEN) | 4 |
