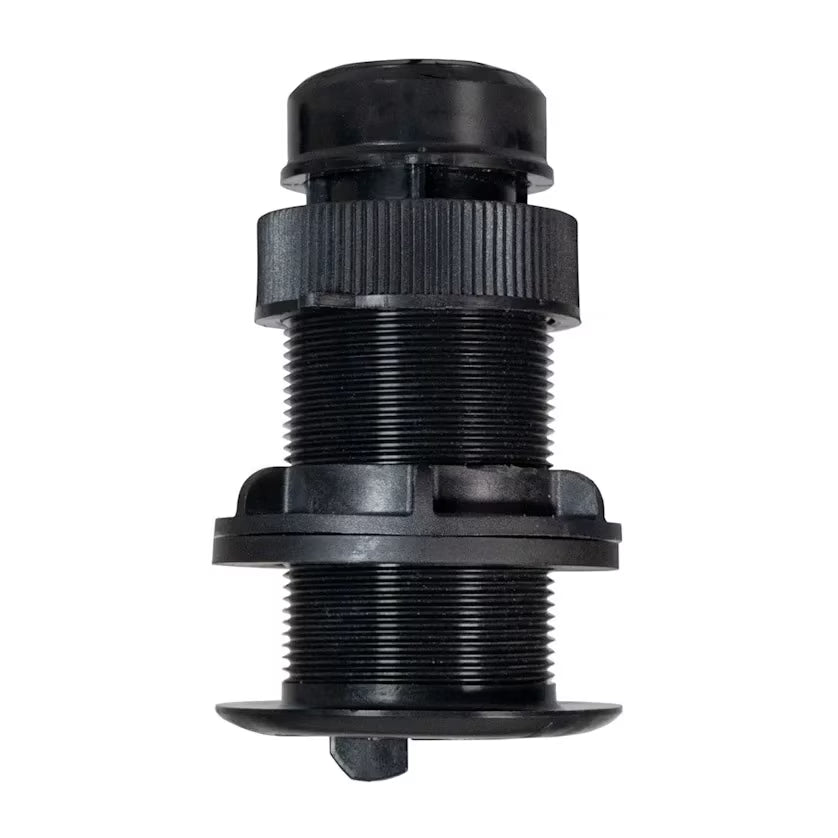

Garmin DST820 Smart Transducer with Plastic Housing - 010-11051-30
Garmin DST820 Smart Transducer with Plastic Housing
Model: 010-11051-30
��
This plastic thru-hull NMEA 2000�� smart transducer combines precise depth, speed and temperature signals with attitude sensing for heel/trim and pitch/roll data. It can read depths to 330 feet and offers fast 5 Hz water speed signal output for smoother visualization on compatible chartplotters or other displays.
Wireless Bluetooth�� connectivity makes it easy to manage calibration of sensor data through the AIRMAR Cast��� app interface. And the 235 kHz sensor operating frequency helps prevent mutual interference with other echosounder devices on the vessel. The transducer���s wide, fan-shaped beamwidth of 10 x 44 degrees enables it to find bottom even when installed on steep deadrise hulls or heeling sailboats.
��
Specifications
��
| General | |
| Transducer frequency | 235 kHz |
| Transducer power | 100 W |
| Transducer beamwidth | 10 x 44 degrees |
| Transducer maximum depth | 330 ft |
| Transducer depth/speed/temperature | Depth, Temperature and Speed |
| Connector | NMEA 2000 |
| Transducer supported deadrise/transom angles | 0 to 22 degrees |
| Transducer Support | |
| Transducer frequency | 235 kHz |
