Garmin

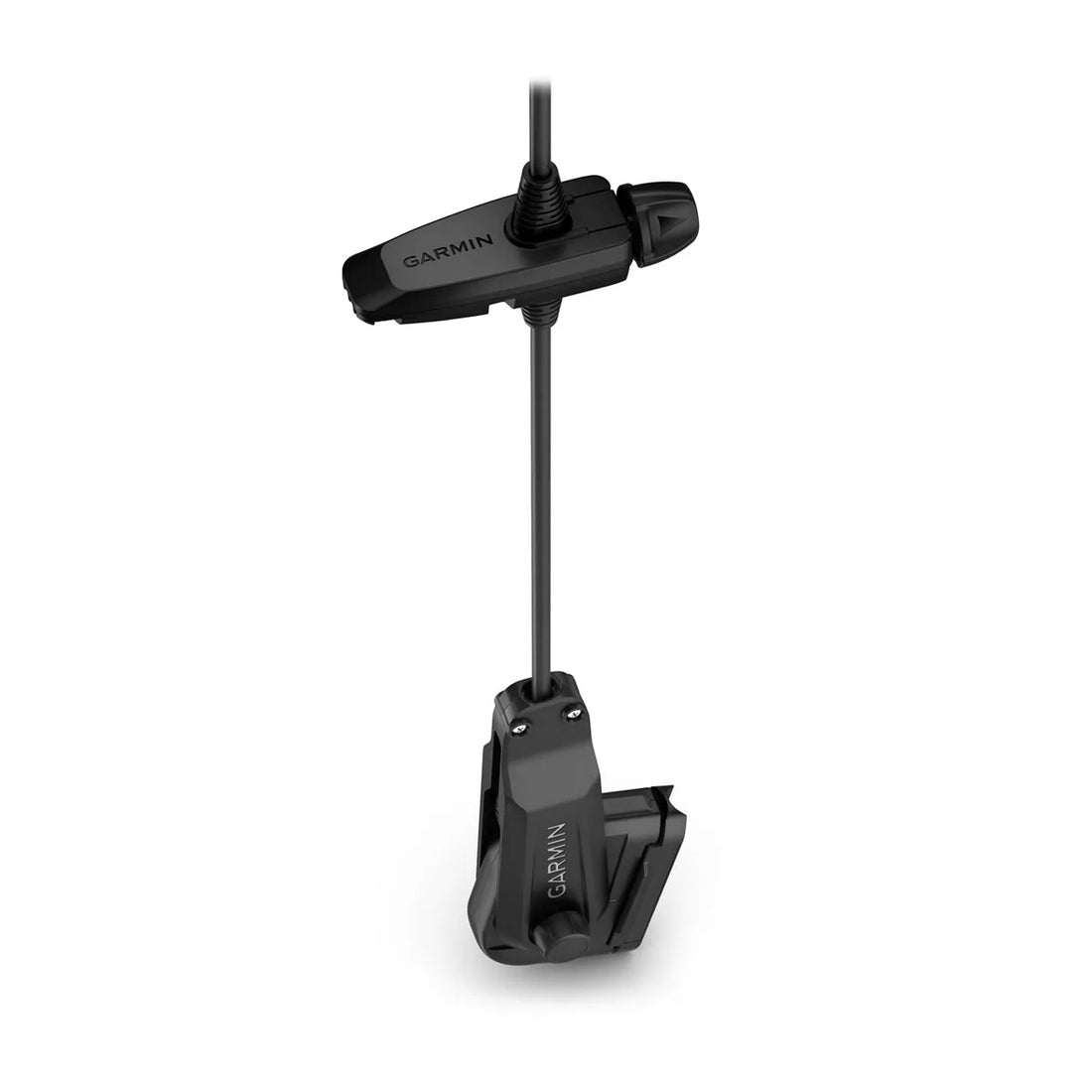

Garmin Panoptix PS22-IF Portable Live Sonar - 010-01945-10
$1,099.99
Part # GAR0100194510
UPC: 753759340223
Available for purchase
Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Product details
Garmin PanoptixTM PS22-IF Portable Live Sonar
Model: 010-01945-10Hop faster between holes with the ultraportable Panoptix PS22-IF transducer. This live sonar transducer has an all-new bracket and rotator - which eliminates the need for a bulky pole mount - as well as a removable lens so you can optimize the sonar beam angle for the water below. Locate schools of fish in real time with two types of Panoptix sonar: LiveVüTM Forward and LiveVüTM Down scan modes.
Specifications| With lens: 12 deg x 120 deg Without lens: 57 deg x 120 deg |
|
| Transducer cable length | 9.8 feet (3 m) |
| Dimension | 9.1 in x 4.1 in x 2.5 in (23.1 x 10.4 x 6.4 cm) |
| Weight | 2.60 lbs (1.18 kg) |
| Temperature range | Operating: 0 deg C to 40 deg C |
| Electrical Features | |
| Power input | 10-32 V |
| Fuse | 4A |
| Sonar Features | |
| Frequency | 417 kHz |
| Transmit power | 48 W |
| Maximum depth | 300 feet |
| Connections | |
| Garmin Marine Network Ports | 1 (standard connector) |
| Sonar Modes | |
| LiveVü Down | Yes |
| LiveVü Forward | Yes |
| Traditional sonar source | Yes |
What's in the Box:
- Panoptix PS22-IF transducer
- Transducer rotator and bracket
- Removable lens
- Hardware
- Documentation
