Hubbell Wiring
Hubbell M5100C7 100A 480V Female Connector Body - M5100C7
$694.20
$1,896.00
Part # HUBM5100C7
UPC: 783585510095
Available for purchase
Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Product details

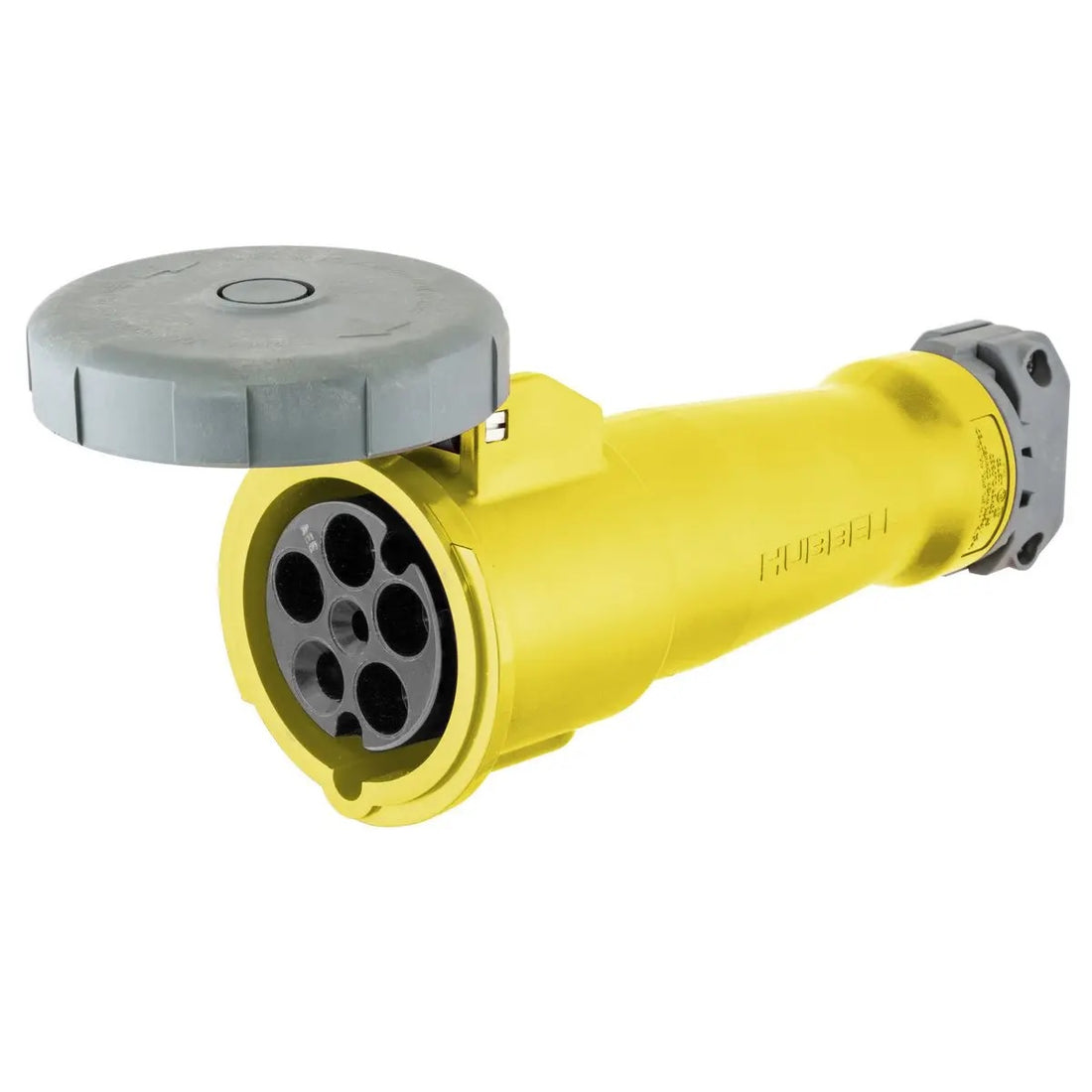

Hubbell M5100C 5-Wire 100 Amp 480 Volt Female Connector Body
Model: M5100C7- Insulated non-metallic housing
- Self-closing gasketed cover
- Color coded housings for easy identification
Heavy Duty Products, IEC Pin and Sleeve Devices, Marine Grade, Female, Connector Body, 100A 3-Phase Wye 277/480V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Yellow
Specifications| 4 | |
| Temperature Rating | Maximum Continuous: 75 deg C; Minimum Continuous: -40 deg C w/o impact, -25 deg with impact. |
| Amperage Rating | 100 |
| Current Rating | 100 |
| Voltage Rating | Three Phase Y 277 VAC Three Phase Y 480 VAC |
| ConductorRange | #4AWG to #2AWG |
| Number Of Wires | 5 |
| NumberOfConductors | 5-Wire Grounding |
| Mates with | M5100P7 |
