Lewmar

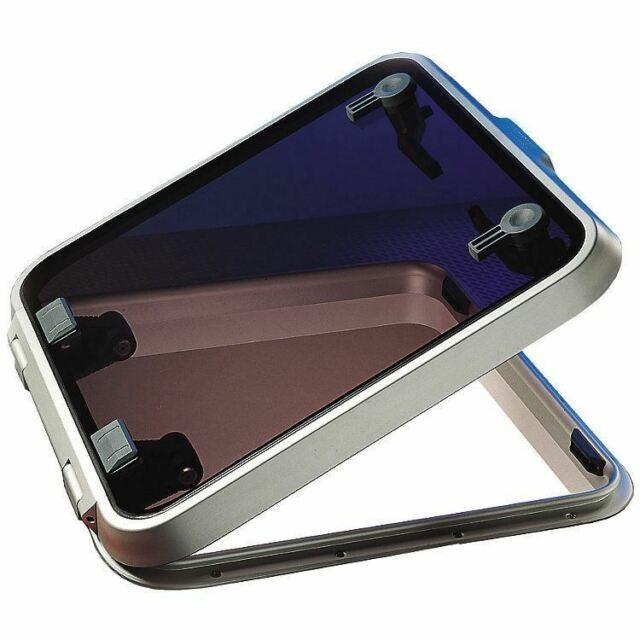

Lewmar Size 60 Ocean Series Hatch Flat Base - 39660050
$740.40
$1,465.95
Part # LEW39660050
UPC: 743683111051
Currently unavailable
Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Available to order. This item will ship once it is back in stock.
Product details
- Fit to a flat surface with a maximum tolerance of +/- 1mm.
- Fastening size at hinge section use (M6 / 1/4 in).
- Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.
- Flat base hatches cannot be used with Trim kits or Roller shades
| Lower Frame (in) | Acrylic Colour | Hatch Weight (lb) | Acrylic Window Thickness (in) |
| Flat Base | Smoke Grey | 17.6 | 1/2 |
Dimensions
| Width Y (in) | Height Z (in) | Radii R (in) | Hinge Length HX (in) | Hinge Width HY (in) | Cut-Out Length Flat X1 (in) | Cut-Out Width Flat Y1 (in) | Cut-Out Radii Flat R1 (in) | |
| 22 5/8 | 22 5/8 | 1 11/16 | 3 | 3/16 | 14 7/16 | 19 3/4 | 19 3/4 | 1 9/16 |
