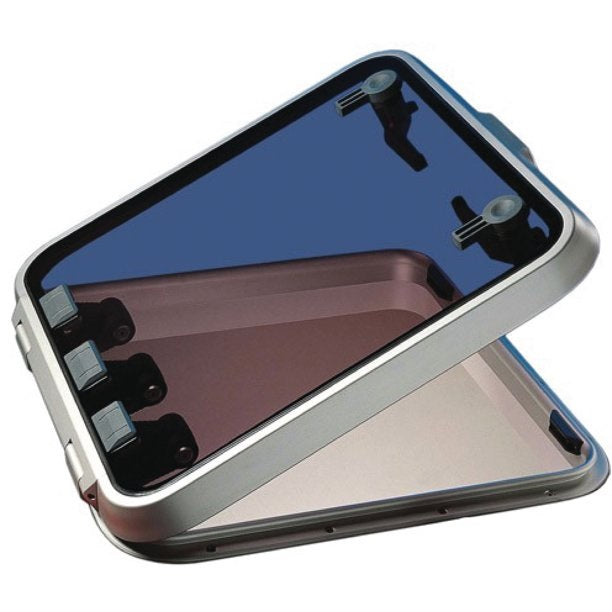

Lewmar Size 70 Ocean Series Hatch Flange Base - 39670070
$1,079.14
$1,961.95
Part # LEW39670070
UPC: 743683113086
Currently unavailable
Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Available to order. This item will ship once it is back in stock.
Product details
- Fit to a flat surface with a maximum tolerance of +/- 1mm.
- Fastening size at hinge section use (M6 / 1/4 in).
- Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.
| Lower Frame (in) | Acrylic Colour | Hatch Weight (lb) | Acrylic Window Thickness (in) |
| 1 in Flange | Smoke Grey | 23.8 | 1/2 |
Dimensions
| Width Y (in) | Height Z (in) | Radii R (in) | Hinge Length HX (in) | Hinge Width HY (in) | Cut-Out Length Flat X1 (in) | Cut-Out Width Flat Y1 (in) | Cut-Out Radii Flat R1 (in) | |
| 27 5/16 | 27 5/16 | 1 11/16 | 3 | 3/16 | 19 3/16 | 24 1/2 | 24 1/2 | 1 11/16 |
