Maretron

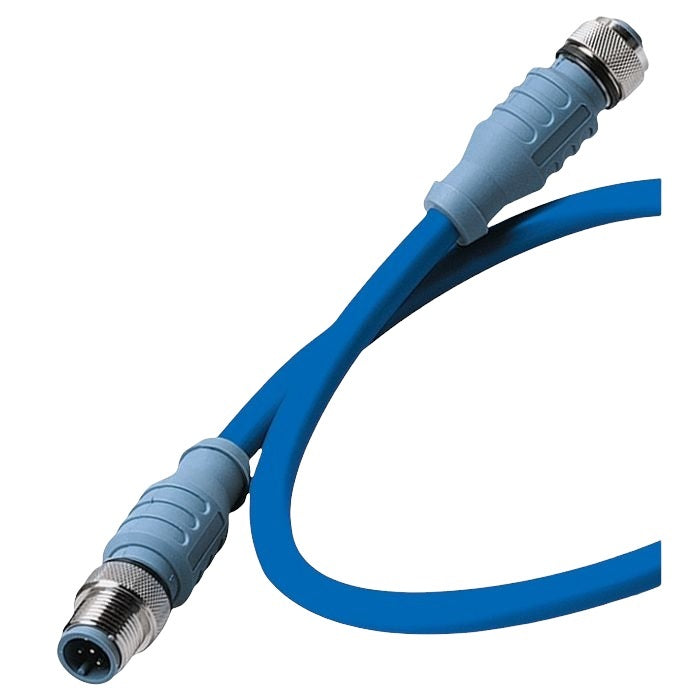

Maretron Blue Mid Cable 5M Male To Female Connector - DM-DB1-DF-05.0
$55.28
$70.00
Part # MARDMDB1DF050
UPC: 873804001944
Available for purchase
Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Product details
Maretron Blue Mid 5 Meter Cable
Model: DM-DB1-DF-05.0
UPC: 873804001944
- Rugged, IP68 rated connectors for continued connection integrity in marine environments
- Various cable lengths to match installation requirements
- Optimized for voltage drop sensitive networks (long runs) because power pair wires have half the resistance of Micro cable
Double-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and are waterproof for continued operation even while submerged in the bilge.
Specifications
| Thermoplastic PUR/Blue | |
| Molded Body Mat/Color | Thermoplastic PUR/Blue |
| Contact Mat/Plating | Brass/Gold |
| Coupling Nut Mat/Plating | Brass/Nickel |
| Connector Outside Diameter | 0.59 in |
| Electrical | |
| Current rating | 4.0 Amps |
| Voltage rating1 | 250v |
| Cable | |
| Outer Jacket Mat/Color | PVC/Blue |
| Conductor Insulation Material | PE (data pair), PVC (power pair) |
| Number of Conductors | 2x16 (1.29mm) AWG, 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire |
| Shielding (3 Levels) | Foil (Overall), Foil (Power Pair), Foil (Data Pair) |
| Enviromental | |
| Protection class | IEC IP68, NEMA 1,3,4,6P |
| Temperature rating | -40 degC to 80 degC to (-40 degF to 176 degF) |
| Approvals | |
| (Cable) UL | PLTC 75 degC Sunlight Resistant E90625, AWM 80 degC 300V |
| (Cable) CSA | CMX-OUTDOOR-CMG LL54185 75 degC, AWM I/II A/B 80C 300V FT4 |
| NMEA | NMEA 2000(R) Approved |
| IEC | IEC 61162-3 |
