Raymarine

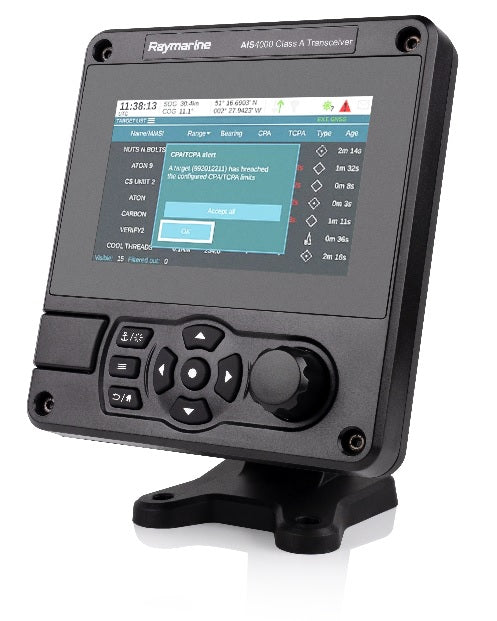

Raymarine AIS4000 Class A AIS - E70601
$3,079.99
Part # RAYE70601
UPC: 723193832066
Currently unavailable
Shipping calculated at checkout. Available delivery options and costs are shown before payment.
Questions about compatibility? Contact our marine electronics team before ordering.
Available to order. This item will ship once it is back in stock.
Product details
Raymarine AIS4000 Class A AIS
Model: E70601Designed for commercial vessels, luxury yachts, and SOLAS high-seas shipping, the AIS4000 Automatic Identification System (AIS) transceiver delivers robust Class A AIS network capability and is engineered to withstand the harsh weather, shock, and vibration of any vessel class.
The AIS4000 boasts a high definition color display for quick access to integrated charts, alarms, and tracking. Additional support for wired and wireless networking with shipboard systems make AIS4000 a premier SOLAS and Inland Waterway-certified Class A transceiver.
Specifications| 152 mm × 165 mm × 70 mm | |
| Weight | 1 kg |
| Electrical | |
| Power supply | 12 to 24 VDC |
| Power consumption | 0.5A at 12v (6W) |
| Connectors | |
| VHF antenna connector | Yes |
| GNSS antenna connector | Yes |
| Power | Two-pin connector (cable provided) |
| Serial interfaces and alarm relay | 18-pin connector (cable provided) |
| Serial inputs | 14-pin connector (cable provided) |
| NMEA 2000 | NMEA 2000 micro connector |
| Data Interfaces | |
| NMEA 0183 (IEC61162-2) bi-directional ports | 3 |
| NMEA 0183 (IEC61162-1) bi-directional ports | 3 |
| DGPS correction data input (ITU-R M.823-2) | 1 |
| Alarm relay output | 1 |
| NMEA 2000 | 1 |
| Wi-Fi | 802.11 b/g/n |
| Pilot Port | 1 (optional) |
| Standards Compliance | |
| AIS standard | IEC 61993-2 Ed 2.0 ITU-R M.1371-5 CCNR VTT Ed 2.0 |
| Serial data interface standards | IEC 61162-1 Ed 4.0 IEC 61162-2 Ed 1.0 IEC 61162-3 2008 Ed 1.2 |
| Environmental Standard | IEC 60945 Ed 4.0 |
| GNSS performance standard | IEC 61108-1 Ed 2.0 IEC 61108-2 Ed 1.0 |
| Product safety | IEC 60945 Ed 4.0 |
| VHF Transceiver | |
| Transmitter | 1 |
| Receiver | 3 |
| Frequency | 156.025 MHz to 162.025 MHz |
| Output Power | 1 W or 12.5 W (automatic) |
| Channel Bandwidth | 25 kHz |
| Channel Step | 25 kHz |
| Modulation Modes | CMSK-TDMA |
| Bit Rate | 9,600 bits/sec |
| Receiver Sensitivity | -107 dBm @ 20% PER |
| GNSS Receiver and Transceiver | |
| Channels | 72 |
| GNSS systems | Supports parallel dual mode operation from GPS, GLONASS, and BeiDou |
| IEC61108-1 | Compliant |
| IEC61108-2 | Compliant |
| GNSS antenna |
Supplied |
| User Interface | 5 in 800 × 480 full color LCD display |
| Environmental | |
| Waterproof | IPx6 and IPx7-rated for water ingress |
| IEC 60945 | 'Protected' category |
| Operating Temperature | -15 degc to +55 degc |
What's in the Box:
- AIS4000 Bundle
- GNSS Antenna
- Power Cable
- 2 x Data Interface Cables
- Fixings Pack
- DeviceNet to STNg Cable
- Manual
- Warranty Card
- Mounting Template
- Quick Start Guide
